| Parameter Item | Specification | Certification Standard |
|---|---|---|
| Rated Loading | 200kg (440lbs) | ISO 6016:2008 |
| Bucket Volume | 0.15m³ (5.3cu.ft) | SAE J732 |
| Maximum Lifting Force | 375kg (826lbs) | CE EN 474-1 |
| Working Speed | 0–6km/h (0–3.7mph) | ANSI B56.6 |
| Hydraulic System Pressure | 17MPa (2465psi) | NFPA T2.13.1 |
| Gradeability | 30% (16.7°) | ISO 3449:2005 |
| Engine Brand | Briggs & Stratton XR2100 | EPA Tier III |
| Output Power | 10.07kW (13.5HP) @ 3060rpm | – |
| Fuel Capacity | 5.6L (1.48gal) | UL 142-certified fuel tank |
| Overall Dimensions | 2100×1000×1400mm (82.7×39.4×55.1in) | ISO 286-2 |
Product Introduction

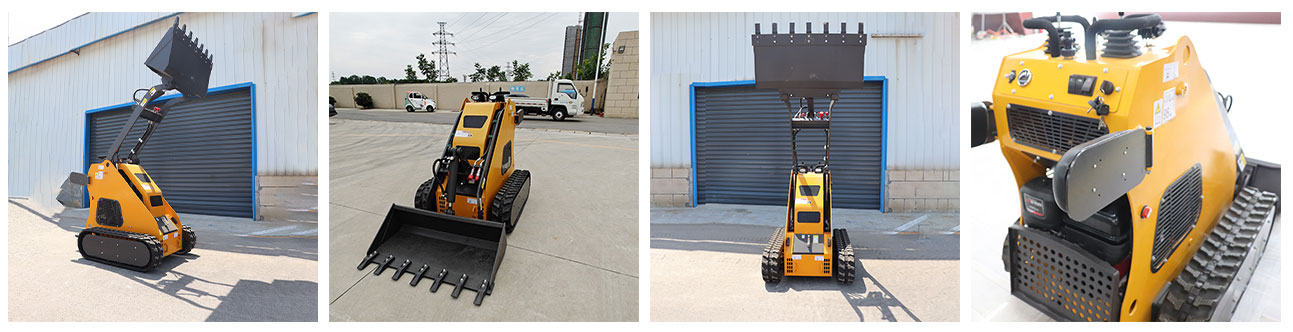

380 Crawler-type Skid Steer Loader |Multifunctional Engineering Solution | CE/ISO Dual-certified | In-stock at Global Ports
1. Efficient Operation System
- Briggs & Stratton V-type single-cylinder engine (28.5Nm peak torque)
- 4.3s rapid lifting + 3.3s intelligent lowering with automatic leveling
- Dual-mode transmission:
0–3km/h for precision tasks / 3–6km/h for fast transitions
2. All-terrain Adaptation Design
- 500mm-wide rubber tracks (ground pressure ≤ 35kPa)
- Capable of operating on extreme 16.7° slopes (gravel adhesion coefficient ≥ 0.85)
- Four-pump independent hydraulic system (flow distribution error < 3%)
3. Ergonomic Innovation
- ROPS/FOPS-certified cab (noise ≤ 82dB(A))
- Finger-tip hydraulic control system (response time < 0.2s)
- Visual fluid monitoring system with oil temperature alert
Global Application Scenarios
▶ Agricultural Facilities
- Forage loading efficiency of 1.5 tons/hour
- Low height of 1400mm allows passage through livestock fences
▶ Construction Sites
- Precise transfer of 0.15m³ concrete
- 890kg self-weight ensures zero foundation damage
▶ Logistics & Warehousing
- Fast transfer of 200kg standardized pallets
- Compact 2100mm length fits shelf aisles
