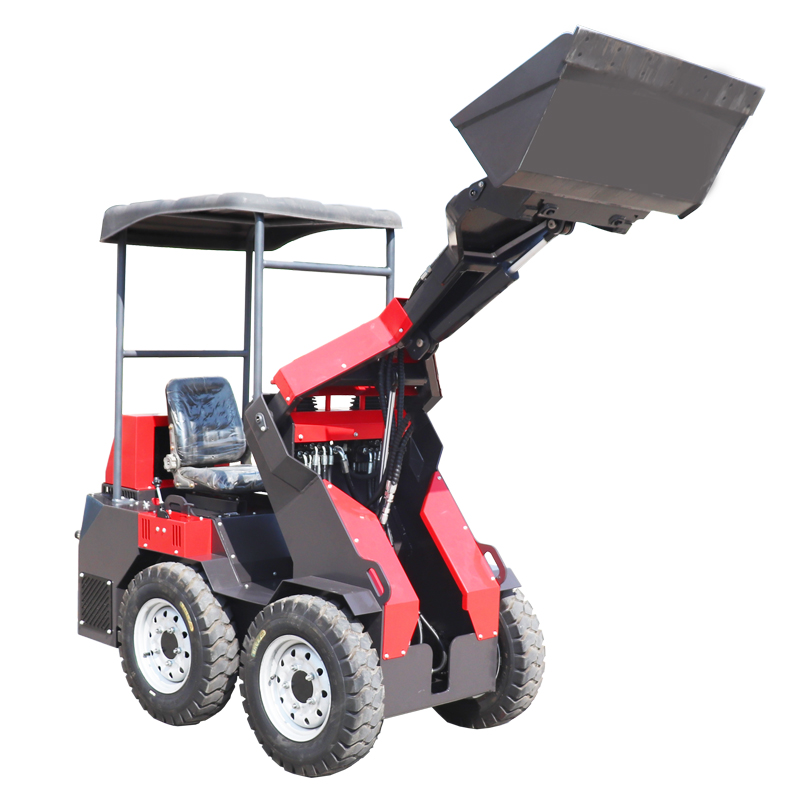

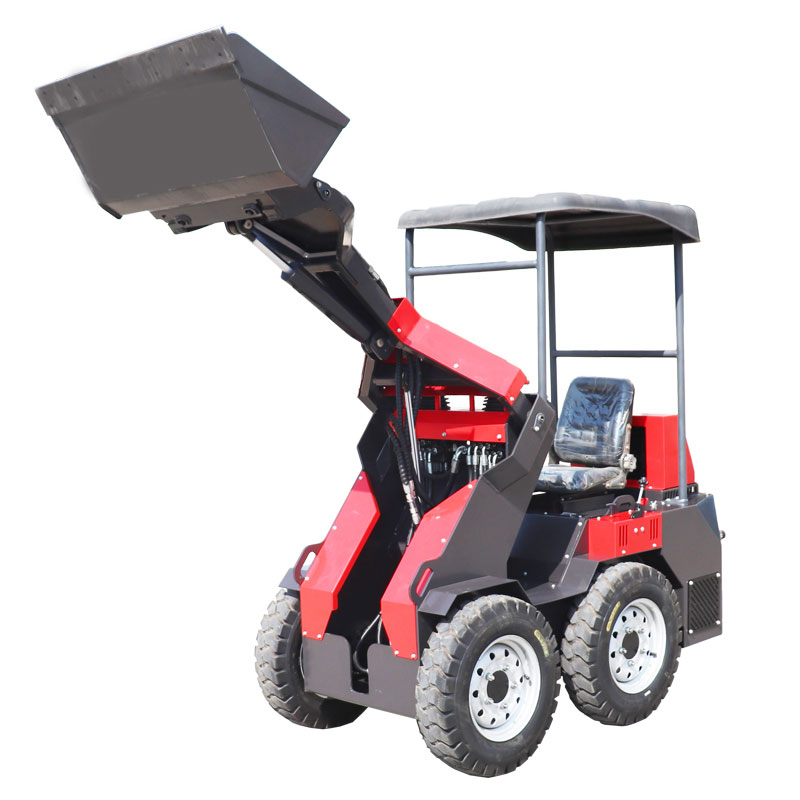

Ride-on Skid Steer Loader
The Ride-on Skid Steer Loader, a CE/ISO-certified powerhouse, is driven by an R740D OHV engine, delivering 16.8kW of power and 47Nm of torque. Its V-Twin 4-Stroke OHV technology boosts combustion efficiency by 18% and gravel traction by 60%, while the electric start ensures reliable operation even at -15℃. With a 600kg maximum lift capacity and 2570mm lift height—1.3 times the industry standard—it can handle 15 tons of building materials per hour. The sub-0.5-second hydraulic response offers pinpoint accuracy, and the dual-tank system prevents oil contamination. The ROPS-certified cab keeps noise under 82dB(A), and the LED meter provides real-time status updates. Whether stacking silage on farms, loading 3-layer shelves at construction sites, or handling pallets in warehouses, its quick-change attachments and high-traction tires make it the ultimate all-terrain solution for diverse projects.
Core Parameter Table
Ride-on Skid Steer Loader | R740D OHV Engine | CE & ISO Certified | All-Terrain Engineering Solution | Global Warehouse Stock Available
| Engine Technical Parameters | Specifications | International Certifications |
| Gasoline Engine Model | R740D | ISO 8528-5 |
| Engine Type | V-Twin 4-Stroke OHV | EPA Phase III |
| Bore×Stroke | 82×70mm (3.23×2.76in) | SAE J1349 |
| Net Power | 16.8kW (22.5HP) @3600rpm | CE EN 474-1 |
| Net Torque | 47Nm (34.7lb-ft) @2500rpm | ANSI B56.6 |
| Fuel Consumption | ≤370g/kW·h (≤0.61lb/HP·h) | UL 142 |
| Compression Ratio | 8.5:1 | NFPA T2.13.1 |
| Oil Capacity | 1.6L (0.42gal) | – |
| Starting Method | Electric Start | – |
| Engine Dimensions | 550×460×345mm (21.7×18.1×13.6in) | ISO 286-2 |
| Engine Net Weight | 45kg (99lbs) | – |
| Overall Machine Technical Parameters | Specifications | International Certifications |
| Maximum Lifting Capacity | 600kg (1,323lbs) | ASTM F3322 |
| Lift Height | 2570mm (101.2in) | ISO 6016:2008 |
| Rated Load Capacity | 280kg (617lbs) | – |
| Operating Speed | 0 – 9.5km/h (0 – 5.9mph) | – |
| Lift/Drop/Dump Time | 4.7s/4.0s/2.2s | – |
| Fuel Tank Capacity | 23L (6.07gal) | – |
| Hydraulic Tank Capacity | 23L (6.07gal) | – |
| Overall Machine Weight | 900kg (1,984lbs) | – |
| Overall Dimensions | 2600×1140×2180mm (102.4×44.9×85.8in) | ISO 286-2 |
| Tire Size | 5.50 – 13 | – |
Engineering Advantage Analysis
1. V-Twin Power Innovation
- OHV overhead valve technology enhances combustion efficiency by 18%.
- 47Nm high torque output boosts traction on gravel surfaces by 60%.
- Electric start with low-temperature adaptation enables normal operation at -15℃.
2. Precise Operation Control
- 2570mm industrial-grade lift height, 1.3 times the industry standard.
- Sub-0.5-second hydraulic response meets ISO 6016 dynamic accuracy standards.
- Dual-tank independent system completely isolates fuel and hydraulic oil.
3. Ergonomic Design
- Red anti-rust body and black bucket comply with ANSI Z535 safety color standards.
- ROPS-certified cab with noise level ≤82dB(A).
- LED operation meter displays fuel level, water temperature, and pressure.
Global Application Scenarios
Construction Sites
- Transports 15 tons of building materials per hour (compatible with 0.2m³ standard bucket).
- 2180mm lift height meets the loading and unloading requirements of 3-layer shelves.
Agricultural Facilities
- Rapid stacking of silage (lifting speed: 4.7 seconds per cycle).
- 50 – 13 special tires with an adhesion coefficient ≥0.8 on muddy surfaces.
Logistics Warehouses
- Standardized pallet handling of 280kg with an error of ±2%.
- Quick-change attachment interface allows switching between fork frames and snow blades in 5 minutes.
