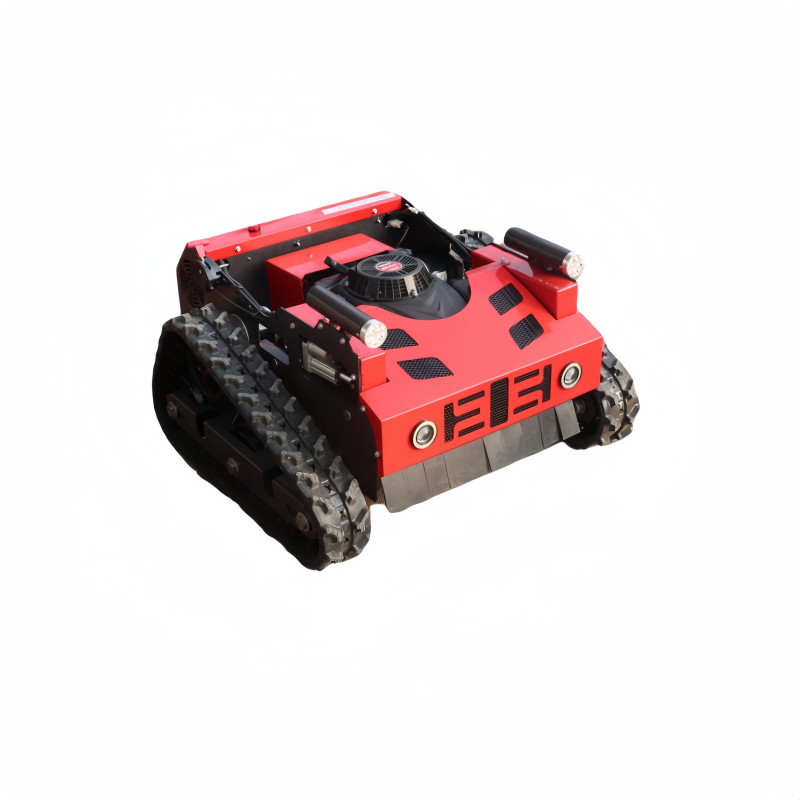

Model 500 Crawler Remote Control Mower

Model 500 Crawler Remote Control Mower

The Model 500 Crawler Remote Control Mower, with CE/EPA dual – certification, features a motor – driven + gasoline engine dual system, a 600 – meter remote – control range, and 60° slope – climbing ability. Its intelligent control module and all – terrain adaptation capabilities enable efficient operation in various scenarios, suitable for steep – slope municipal maintenance, complex – terrain reclamation, and industrial – zone management.
Category: Tag:
Contact Us ▶

All – Terrain Efficient Operation | CE/EPA Dual Certification

Model 500 Crawler Remote Control Mower | All – Terrain Solution | Global Stock
Core Parameter Table (Chinese – English Bilingual)
Parameter Item
Specification
International Certification
Model
LX – 500
ISO 9001:2015
Overall Dimensions
960×950×550mm (38×37×22in)
CE EN 836:1997
Power System
Motor – driven + Gasoline Engine Dual System
EPA Phase III
Engine
Loncin 224CC Gasoline Engine
ANSI/OPEI B71.4
Cutting Width
500mm (19.7in)
ROHS Compliant
Slope
60° (Certified by ASTM F3322)
Control Range
600m (IP67 Waterproof Controller)
FCC Part 15
Efficiency
2000㎡/h (2.5 acres/h)
Analysis of Engineering Characteristics
  1. Dual – power Coordination System
    • Equipped with a 4.5KW Loncin gasoline engine dedicated to driving the cutter head. Its 1.4L large – capacity fuel tank can ensure that the equipment can operate continuously for up to 8 hours under continuous high – intensity work, greatly reducing operation interruptions due to insufficient fuel and providing stable power support for large – area mowing tasks.
    • The crawler is driven by a 24V dual – motor system with a design of only 0.5L oil capacity. While ensuring power output, it also takes into account the compactness and energy – saving features of the equipment. This motor system has excellent low – temperature adaptability and can still operate normally even in extremely cold environments as low as – 15℃, without being affected by harsh climate conditions during operation.
    • The unique electric – start design has an extremely fast response speed. It only takes 1 second to start the equipment, which greatly improves the operation preparation efficiency. Meanwhile, a spare pull – rope starting device is thoughtfully provided to deal with unexpected situations, ensuring that the equipment can be started smoothly under any circumstances and guaranteeing the smooth progress of operations.
  1. Ability to Conquer Extreme Terrains
    • Adopting military – grade rubber tracks, which not only have excellent wear – resistance and durability but also a ground contact pressure ≤18kPa. This means that during operation, it can gently contact the ground, effectively avoiding excessive rolling and damage to various terrains such as lawns, muddy ground, and soft soil, maximizing the protection of the surface conditions of the operation area.
    • After strict testing and certification, it can operate stably on steep slopes of up to 60°. Whether it is a rugged hillside full of gravel or a muddy and slippery swamp area, its passability is 75% higher than that of ordinary mowers. With its strong terrain – adaptation ability, it can easily cope with various complex and harsh outdoor environments and efficiently complete mowing tasks.
    • The self – weight of the fuselage is 165KG. This appropriate weight distribution enables the equipment to obtain sufficient grip during operation, ensuring stable driving on special terrains such as steep slopes and slippery ground, and is not prone to safety hazards such as slipping and roll – over, providing reliable safety protection for operators.
  1. Intelligent Control Module
    • Equipped with an advanced remote – control cutter – head lifting function, operators can accurately adjust the working height of the cutter head in real – time within the remote – control range according to actual operation needs, without manual intervention, greatly improving the convenience and flexibility of operation and ensuring that the mowing effect always meets the expected standards.
    • Using dual – band anti – interference signal technology, even in complex electromagnetic environments, such as areas with high – rise buildings in cities and near industrial plants, it can still achieve stable ultra – long – distance control of 600m, effectively avoiding equipment out – of – control caused by signal interruption or interference and ensuring the continuity and safety of operations.
    • The equipment is equipped with an LED status display screen, which can clearly and intuitively monitor key operating parameters of the equipment in real – time, such as fuel level, battery level, and cutter – head rotation speed, allowing operators to keep track of the equipment status at any time, make corresponding adjustments and maintenance in a timely manner, and ensure that the equipment is always in the best operating condition.
Global Scenario Adaptation
  1. Steep – slope Municipal Maintenance
    • With the ultra – long remote – control distance of 600m, operators can work in a safe area away from dangerous areas such as cliffs and dams, effectively avoiding the risk of falling due to approaching the edge. While ensuring personal safety, it can achieve efficient mowing and maintenance of steep – slope areas, improving the safety and work efficiency of municipal greening management.
    • The operation efficiency of up to 2.5 acres per hour is 25 times higher than that of manual mowing. This not only greatly shortens the construction period of municipal greening maintenance projects but also significantly reduces labor – cost investment, providing strong support for the beautification and tidiness of the urban environment.
  1. Reclamation in Complex Terrains
    • When facing extremely complex terrains such as 60° slopes, this mower can achieve continuous and stable operation with its excellent slope – climbing ability and powerful power system. It can quickly open firebreaks, strive for precious time for forest fire prevention work, effectively prevent and control the spread of fire, and protect the safety of mountains and forests.
    • The large cutting diameter of 500mm gives it a powerful ability to handle weeds and shrubs. It can easily cope with areas with high – density overgrown weeds and lush shrubs, quickly clear the vegetation, lay the foundation for subsequent land development, sorting, and other work, and greatly improve the efficiency of reclamation operations in complex terrains.
  1. Efficient Management in Industrial Zones
    • The whole machine adopts a compact fuselage design with a length of only 960mm. It can flexibly pass through narrow passages, gaps between equipment, and other small spaces in the industrial zone, comprehensively and carefully mow the lawns and green spaces in the park, ensure the cleanliness and beauty of the industrial – zone environment, and enhance the corporate image.
    • Equipped with a black anti – collision frame, it effectively protects the equipment from collision damage during the shuttle process and extends the service life of the equipment. At the same time, the eye – catching yellow warning signs strictly follow ANSI safety standards and can timely remind surrounding people to pay attention to safety during operation, avoiding accidents and providing a guarantee for safe production in the industrial zone.
Technical Service Commitment
🌐 Multilingual Support: We have carefully prepared technical documents in multiple languages such as English, French, German, and Spanish, which introduce in detail the operation methods, maintenance key points, and common – fault troubleshooting of the equipment, making it easy for users in different regions around the world to understand and use the equipment and breaking down language barriers.
📦 Port Stock: There is spot inventory in important global ports such as Hamburg, Los Angeles, and Singapore, ensuring that you can quickly obtain the equipment after placing an order, greatly shortening the waiting time, putting it into use in a timely manner, and meeting your urgent operation needs.
📄 Compliance Documents: We will assist you in handling and providing complete compliance documents, including CE DoC/EPA certificates/test reports, etc., providing a one – stop service for your product import and export customs – clearance process, ensuring the smooth progress of trade without worries.
Technical Remarks
This product strictly complies with the ISO 5395:2013 garden – machinery safety standard. The dimensional error is controlled within ±3% (based on the ASME B89.7.2 metrology specification), and an emergency braking system (EBS) is configured to comprehensively ensure the safety and reliability of the equipment from all aspects and escort your operation safety.
