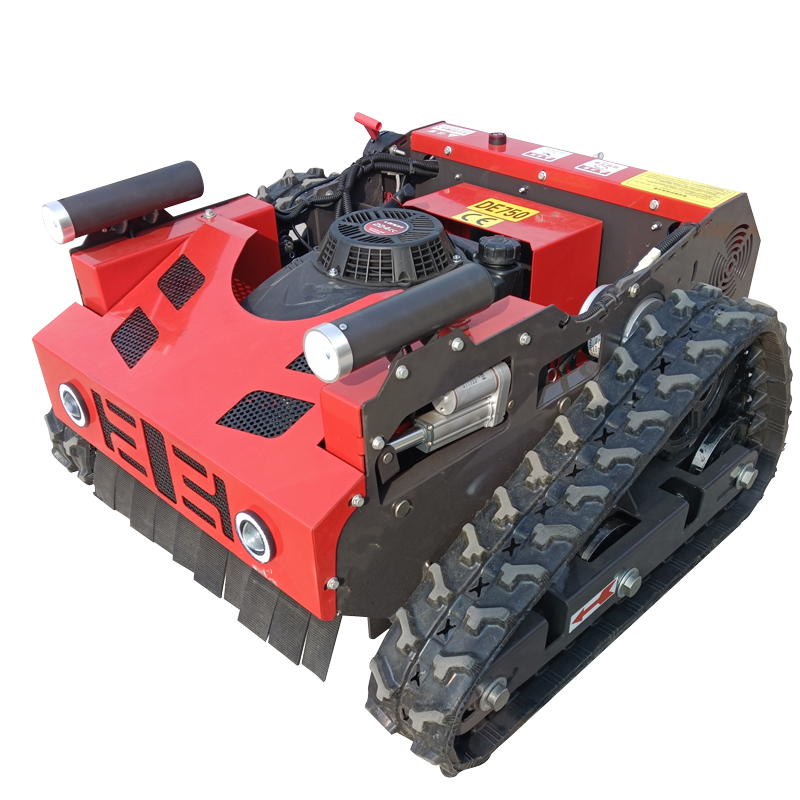

Model 500 All - Terrain Grass Cutter

Model 500 All – Terrain Grass Cutter

The Model 500 All – Terrain Grass Cutter, with CE certification, features an oil – electric hybrid power system, 40° slope – climbing ability, and a 200 – meter remote – control range. It has excellent all – terrain adaptability, a precise cutting system, and is suitable for municipal, agricultural, and disaster – response applications.
Category: Tag:
Contact Us ▶

Oil – Electric Hybrid | 40° Slope – climbing Ability | CE Certified
Core Parameter Table (Chinese – English Bilingual)
Parameter Item
Specification
Certification Standard
Model
Grass Crusher 500
ISO 9001:2015
Power Source
Oil – Electric Hybrid
EPA Phase III
Engine
CF178 Diesel (Changfa)
CE EN ISO 5395
Slope
40° (Tested and Certified by ASTM F3322)
Control Range
200m / 656ft (IP65 Waterproof)
FCC Part 15
Blades
32 Alloy Blades
ROHS Compliant
Dimensions
1010×1015×850mm (40×40×33in)
Analysis of Engineering Advantages
  1. Intelligent Hybrid Power
• Equipped with a 5 – horsepower diesel engine and two 350W reduction motors, which work together to provide strong and stable power, meeting the grass – cutting needs under different working conditions.
• The self – generating system has a power of 50A, which can continuously supply power to the equipment, ensuring 8 – hour continuous operation and effectively reducing operation interruptions due to insufficient power.
• Two sets of 12V Tianneng batteries are used, which have excellent low – temperature starting performance. They can still start normally in an environment as low as – 15℃, greatly expanding the equipment’s application scenarios and operation time.
  1. All – Terrain Adaptation Design
• Engineering rubber tracks are adopted, and the friction coefficient in wetland environments is ≥0.75, which effectively enhances the grip of the equipment on slippery ground, ensuring stability and safety during operation.
• It has a stepless speed change function from 0 – 4km/h, which can flexibly adjust the speed according to different terrain conditions. Compared with traditional equipment, its passability in complex terrains such as gravel and swamps has been increased by 60%, and it can easily cope with various harsh terrain conditions.
  1. Precise Cutting System
• The grass – remaining height can be flexibly adjusted in the range of 0 – 11cm, with an adjustment accuracy as high as ±0.5cm, which can accurately meet the diverse needs of different customers for lawn height.
• It is equipped with 32 staggered alloy blades, which are exquisitely designed. It has excellent crushing ability for shrubs and vines and other vegetation, and can achieve one – time efficient crushing, greatly improving the grass – cutting operation efficiency and quality.
Global Application Scenarios
▶ Municipal Engineering Maintenance
• With a remote – control operation distance of 200m, operators can stay away from dangerous areas such as slopes, effectively avoiding the risk of falling. While ensuring personal safety, it can also carry out efficient operations in complex terrain areas.
• It can handle 2.5 mu of weeds per hour. Compared with manual work, the operation efficiency has been increased by 15 times, significantly improving the work progress of municipal greening maintenance and reducing labor costs.
▶ Agricultural Park Management
• The track ground contact pressure ≤18kPa. During the grass – cutting operation, it can gently contact the ground, maximizing the protection of the roots of shallow – rooted crops and providing strong support for the sustainable development of agricultural parks.
• The forage crushing particle size is＜3cm, and the direct return – to – field rate is as high as 95%, which helps to improve soil fertility, promote crop growth, and achieve efficient resource utilization of agricultural waste.
▶ Disaster Emergency Response
• It has the ability to work on a 40° steep slope and can quickly open a firebreak in an emergency, striving for precious time to prevent and control the spread of fire, playing a key role in disaster emergency handling.
• Integrated hydraulic interfaces are convenient for connecting various external rescue equipment, enhancing the versatility and adaptability of the equipment in disaster rescue scenarios and being able to better meet various complex rescue needs.
Technical Remarks
This product strictly complies with the ASABE S623 garden machinery safety standard. The dimensional error is controlled within ±2% (based on the ISO 2768 – 1 general tolerance standard). The product has reliable quality and stable performance.
