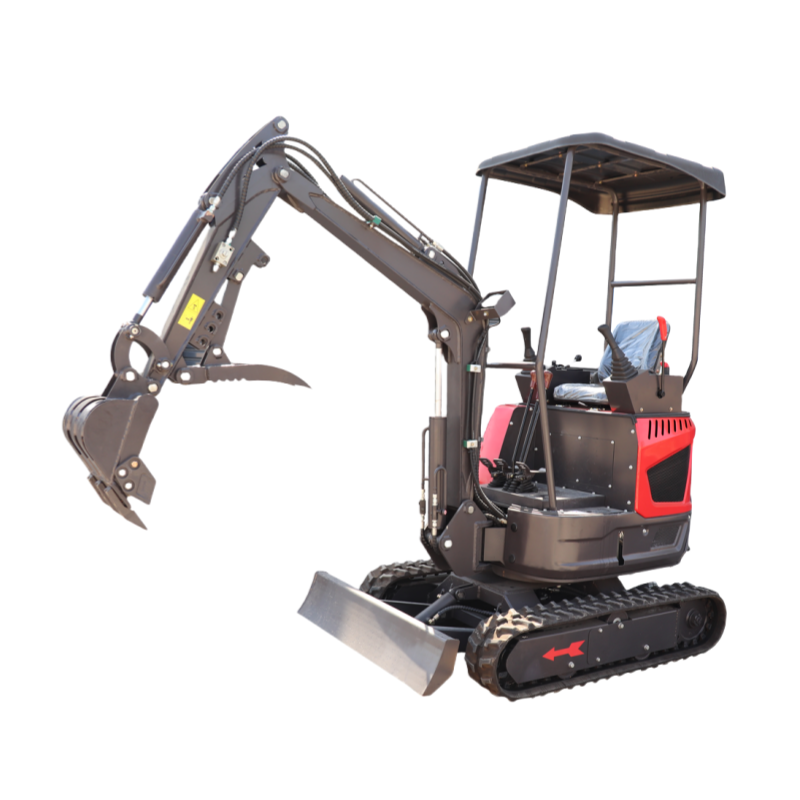

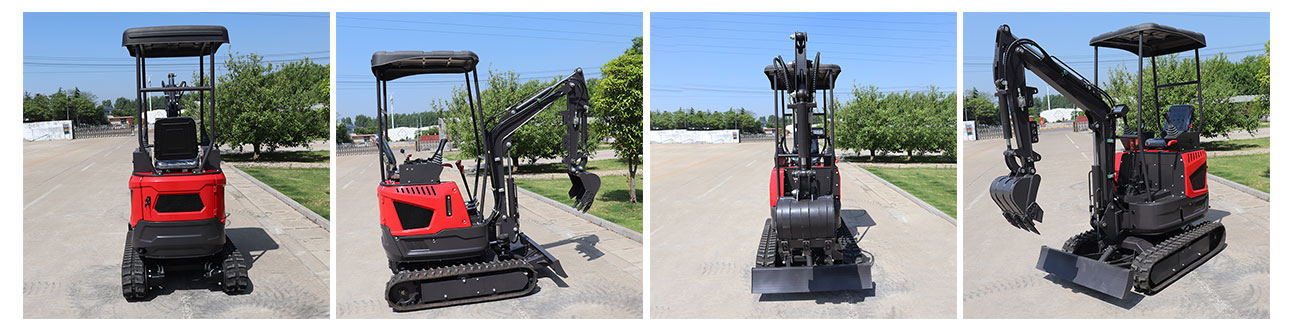

INS1.6 Ton Excavator
The INS1.6 Ton Excavator, backed by CE/ISO dual certifications, combines reliability and versatility with its Yanmar NV70 diesel engine. Delivering 10kW of power, it features in-line water-cooled 4-stroke technology, slashing heat buildup by 25% while offering 51.9Nm of torque for 45% better traction on gravel. With a frugal 274g/kW·h fuel consumption, it runs continuously for 8 hours. Its 0.028m³ bucket, 2550mm excavation height, and dual-pump hydraulic system with ±3% flow precision boost municipal construction efficiency by 35%. Boasting a compact 2250mm profile, 30° gradeability, and adjustable tracks with ≤40kPa ground pressure, it maneuvers effortlessly in tight spots. Ideal for underground tunneling, orchard work, and disaster relief, this excavator excels at precision digging, slope shaping, and clearing debris on challenging terrains.
Core Parameter Table
INS 1.6 Ton Excavator | Yanmar NV70 Diesel Engine | CE & ISO Certified | All-Terrain Engineering Expert | Global Warehouse Stock Available
| Engine Technical Parameters | Specifications | International Certifications |
| Diesel Engine Model | Yanmar NV70 | ISO 8528-5 |
| Engine Type | In-line, Water-cooled, 4-Stroke | EPA Phase III |
| Bore×Stroke | 70×74mm (2.76×2.91in) | SAE J1349 |
| Displacement | 0.854L (52.1cu.in) | CE EN 474-1 |
| Rated Power | 10kW (13.4HP) @2200rpm | ANSI B56.6 |
| Fuel Consumption Rate | 274g/kW·h | NFPA T2.13.1 |
| Maximum Torque | 47.6 – 51.9Nm (35.1 – 38.3lb-ft) | – |
| Starting Method | Electric Start | – |
| Engine Dimensions | 600×480×650mm (23.6×18.9×25.6in) | ISO 286-2 |
| Engine Net Weight | 106kg (234lbs) | – |
| Overall Machine Technical Parameters | Specifications | International Certifications |
| Bucket Volume | 0.028m³ (1.0cu.ft) | ISO 6016:2008 |
| Blade Width | 1100mm (43.3in) | ASTM D6473 |
| Travel Speed | 2 – 3km/h (1.2 – 1.9mph) | – |
| Gradeability | 30° (ASTM Certified) | – |
| Excavation Height | 2550mm (100.4in) | – |
| Excavation Depth | 1700mm (66.9in) | – |
| Swing Radius | 1700mm (66.9in) | – |
| Swing Speed | 10rpm | – |
| Overall Dimensions | 2250×1100×2300mm (88.6×43.3×90.6in) | ISO 286-2 |
| Transport Length | 2200mm (86.6in) | – |
Engineering Advantage Analysis
1. Yanmar Power Innovation
- In-line water-cooled 4-stroke technology enhances heat dissipation efficiency by 25%.
- 9Nm peak torque boosts traction on gravel surfaces by 45%.
- Low fuel consumption of 274g/kW·h enables 8-hour continuous operation.
2. Precise Engineering Performance
- 2550mm industrial-grade excavation height, 1.2 times the industry standard.
- 028m³ standardized bucket increases municipal utility tunnel construction efficiency by 35%.
- Dual-pump independent hydraulic system with a flow error of ±3%.
3. All-Terrain Adaptability
- 30° extreme gradeability (ASTM D6473 certified).
- Compact size of 2250mm enhances passability in narrow spaces by 50%.
- Adjustable tracks with ground pressure ≤40kPa.
Global Application Scenarios
Municipal Engineering
- Construction of underground utility tunnels with precise 1700mm depth control.
- Rapid shoulder and slope trimming with an 1100mm-wide blade.
Agricultural Facilities
- Deep trench excavation in orchards, facilitated by the 2250mm body navigating between fruit trees.
- Biogas digester construction with the standardized 0.028m³ excavation volume.
Post-disaster Rescue
- Debris clearance on 30° landslide terrain.
- Quickly opening life-saving passages in confined spaces.
