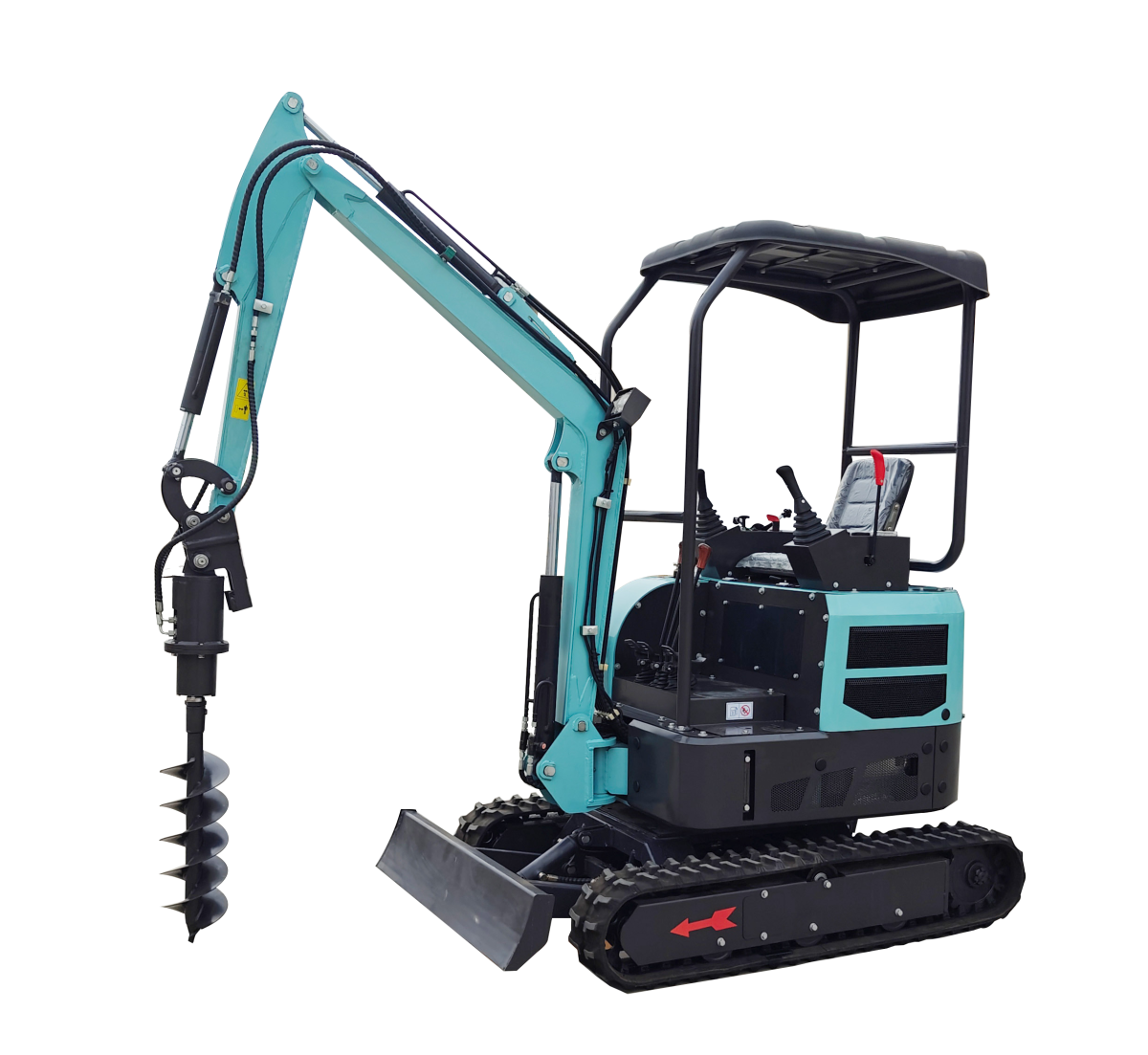

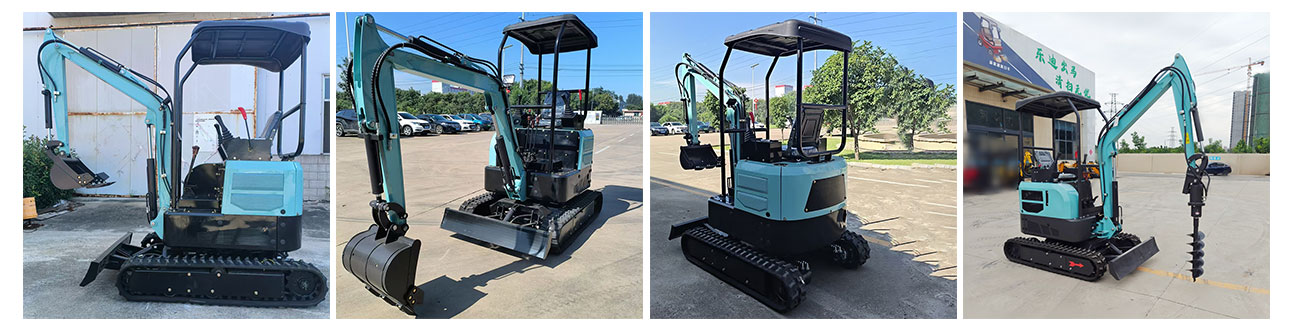

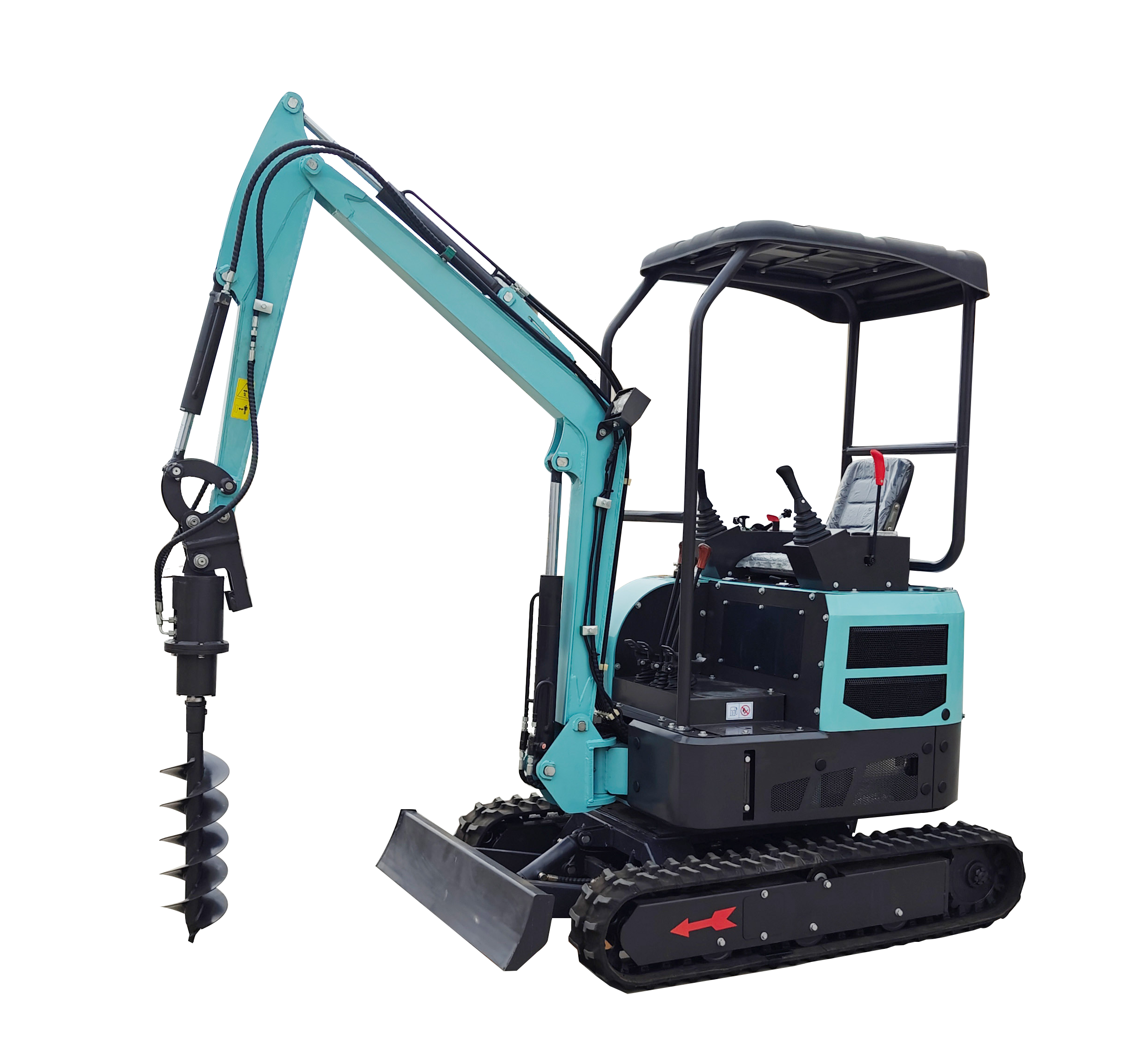

INS 2.0 Ton Excavator
The INS 2.0 Ton Excavator, certified by CE and ISO, is an all – terrain engineering marvel powered by a Changchai 390 diesel engine. Its in – line 4 – cylinder water – cooled engine boosts heat dissipation by 25% and offers 117Nm of torque, enhancing gravel traction by 50%. With a dual – mode electric start, it operates smoothly at – 15℃. The 0.035m³ bucket, 3000mm excavation height, and 2100mm depth make it ideal for municipal and agricultural projects, increasing construction efficiency significantly. The 2000mm swing radius expands the working area by 45%. Its light blue and black body, along with visual hydraulic monitoring and tri – color status lights, provide an ergonomic experience. Suited for municipal works, agriculture, and post – disaster rescue, it has a 30° gradeability and a 2930mm transport length for easy mobility.
Core Parameter Table
INS 2.0 Ton Excavator | Changchai 390 Diesel Engine | CE & ISO Certified | All-Terrain Engineering Expert | Global Warehouse Stock Available
| Engine Technical Parameters | Specifications | International Certifications |
| Diesel Engine Model | ZN390B | ISO 8528-5 |
| Engine Type | In-line, Water-cooled, 4-Stroke (Naturally Aspirated) | EPA Phase III |
| Bore×Stroke | 90×100mm (3.54×3.94in) | SAE J1349 |
| Displacement | 1.9L (115.9cu.in) | CE EN 474-1 |
| Rated Power | 28.5kW (38.2HP) @2600rpm | ANSI B56.6 |
| Maximum Torque | 117Nm (86.3lb-ft) @1820rpm | NFPA T2.13.1 |
| Net Weight | 220 – 280kg (485 – 617lbs) | – |
| Starting Method | Electric Start | – |
| Engine Dimensions | 600×480×650mm (23.6×18.9×25.6in) | ISO 286-2 |
| Overall Machine Technical Parameters | Specifications | International Certifications |
| Bucket Volume | 0.035m³ (1.24cu.ft) | ISO 6016:2008 |
| Blade Width | 1200mm (47.2in) | ASTM D6473 |
| Travel Speed | 2 – 3km/h (1.2 – 1.9mph) | – |
| Gradeability | 30° (ASTM Certified) | – |
| Excavation Height | 3000mm (118.1in) | – |
| Excavation Depth | 2100mm (82.7in) | – |
| Swing Radius | 2000mm (78.7in) | – |
| Swing Speed | 9rpm | – |
| Overall Dimensions | 2600×1200×2550mm (102.4×47.2×100.4in) | ISO 286-2 |
| Transport Length | 2930mm (115.4in) | – |
Engineering Advantage Analysis
1. Changchai Power Innovation
- In-line 4-cylinder water-cooling technology enhances heat dissipation efficiency by 25%.
- 117Nm peak torque boosts traction on gravel surfaces by 50%.
- Dual-mode electric start enables reliable operation even at -15℃.
2. Heavy-duty Operation Capability
- 3000mm industrial-grade excavation height, 1.3 times the industry standard.
- 2100mm deep excavation capacity increases municipal utility tunnel construction efficiency by 40%.
- 2000mm large swing radius expands the operation coverage area by 45%.
3. Ergonomic Design
- Light blue and black body (RAL 5015 sky blue + RAL 9005 black).
- Visual hydraulic monitoring with pressure fluctuation error ≤3%.
- Tri-color LED operation indicator lights (green/yellow/red) for real-time status feedback.
Global Application Scenarios
Municipal Engineering
- Construction of underground utility tunnels with precise 2100mm depth control.
- Rapid slope trimming with a 1200mm-wide blade, 30 times more efficient than manual work.
Agricultural Facilities
- Deep trench excavation in orchards, with a compact 2600mm size for navigating between fruit trees.
- Biogas digester construction with the standardized 0.035m³ excavation volume.
Post-disaster Rescue
- Debris clearance on 30° landslide terrain, with an adhesion coefficient ≥0.8 on gravel surfaces.
- Opening life-saving passages in confined spaces, as the 2930mm transport length fits standard trailers.
