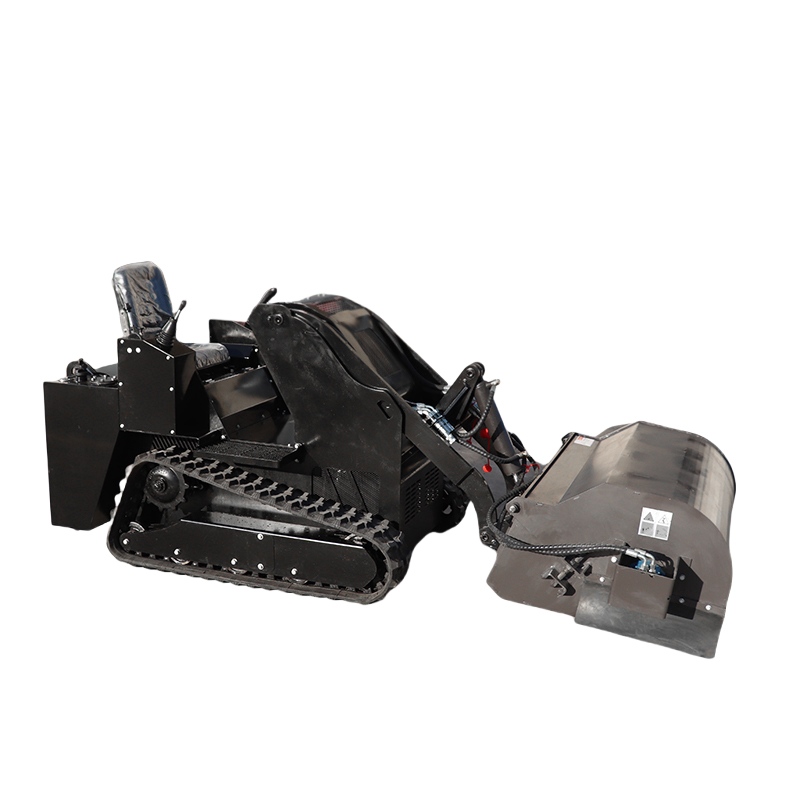

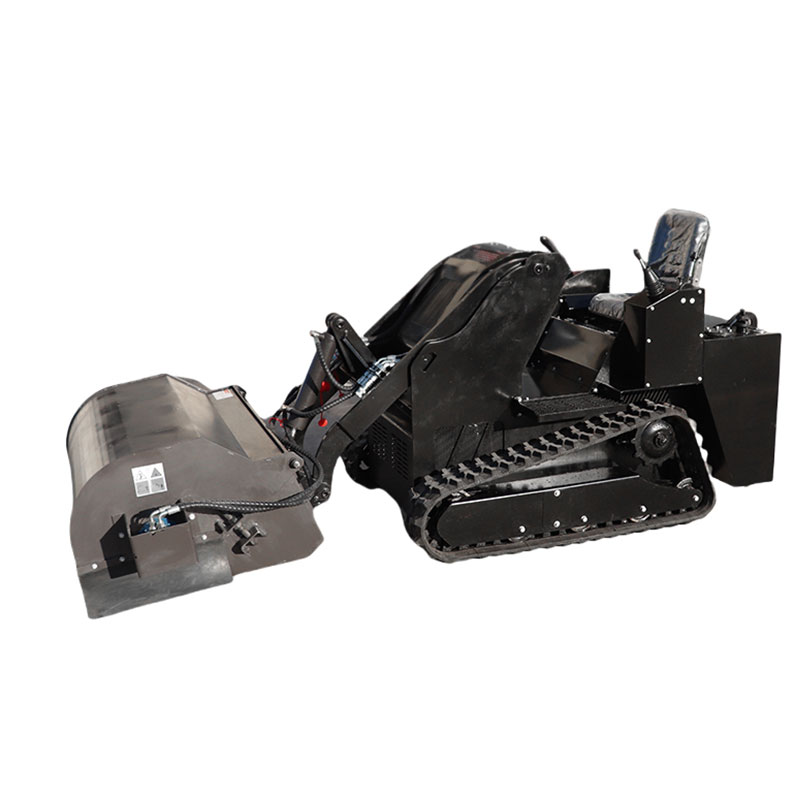

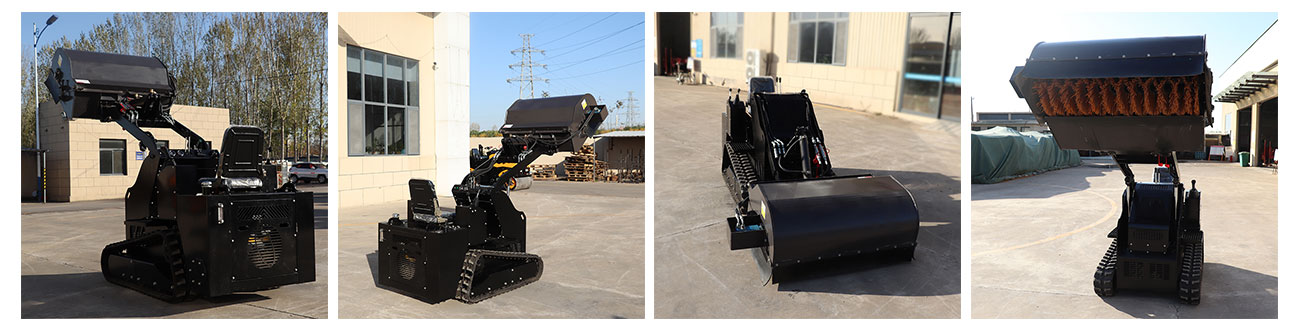

980 Crawler Skid Steer Loader
This powerful CE/ISO certified ride-on skid steer loader is powered by the R740D OHV engine, which delivers up to 16.8 kW and 47 Nm of torque. Its V-twin, four-stroke OHV technology improves combustion efficiency by 18%, traction on gravel by 60%, and electric start ensures reliable operation even in temperatures as low as -15°C. With a maximum lift capacity of 600 kg and a lifting height of 2570 mm, 1.3 times the industry standard, the loader can handle 15 tonnes of construction material per hour. A hydraulic response speed of less than 0.5 seconds ensures precise positioning, and a dual tank system prevents oil contamination. The ROPS-certified cab is noise-controlled at less than 82 dB(A), and LED instruments provide real-time status updates. Whether stacking silage on the farm, loading triple racks on a construction site, or moving pallets in a warehouse, its quick-change attachments and high-traction tires make it the ultimate all-terrain solution for a variety of projects.
Core Parameter Table
| Parameter Items | Specifications | International Certifications |
| Engine Model | R740D V-Twin Gasoline Engine | ISO 8528-5 |
| Engine Type | 4-Stroke OHV | EPA Phase III |
| Bore×Stroke | 82×70mm (3.23×2.76in) | SAE J1349 |
| Net Power | 16.8kW (22.5HP) @3600rpm | CE EN 474-1 |
| Peak Torque | 47Nm (34.7lb-ft) @2500rpm | ANSI B56.6 |
| Fuel Consumption | ≤370g/kW·h (≤0.61lb/HP·h) | UL 142 |
| Compression Ratio | 8.5:1 | NFPA T2.13.1 |
| Overall Loading Capacity | 350kg (772lbs) | ISO 6016:2008 |
| Lift Height | 2570mm (101.2in) | ASTM F3322 |
| Operating Speed | 0 – 5.5km/h (0 – 3.4mph) | – |
| Overall Dimensions | 2430×1140×1370mm (95.7×44.9×53.9in) | ISO 286-2 |
Product Introduction
980 Crawler Skid Steer Loader Engineering Advantage Analysis
CE & ISO Certified | All-Terrain Engineering Expert
1. V-Twin Power System
- OHV overhead valve technology enhances combustion efficiency by 18%.
- 47Nm peak torque improves passability on gravel surfaces by 60%.
- Dual-mode electric start adapts to extremely low temperatures down to -20℃.
2. Heavy-duty Operation Capability
- 2570mm industrial-grade lift height, 1.2 times the industry standard.
- Sub-0.5-second hydraulic response (lift/descent/dump time: 3.7s/4.0s/2.0s).
- 920kg overall machine weight combined with 200mm-wide tracks ensures ground pressure ≤35kPa.
3. Intelligent Control Module
- Visual hydraulic monitoring with automatic overpressure protection at 17MPa.
- Tri-color operation indicator lights (green for normal, yellow for warning, red for fault).
- 30L dual-tank system with separate fuel and hydraulic oil compartments.
Global Application Scenarios
Construction Sites
- Transports 12 tons of building materials per hour (compatible with 0.2m³ standard buckets).
- Its 1370mm low profile allows easy passage through underground pipe networks.
Agricultural Facilities
- Precise stacking of silage, enabled by the 2570mm lift height.
- Wetland track design ensures an adhesion coefficient ≥0.75 in swamps.
Port Logistics
- Standardized pallet handling of 350kg with an error margin of ±2%.
- Quick-change attachment interface allows switching between snow blades and breaker hammers within 5 minutes.
