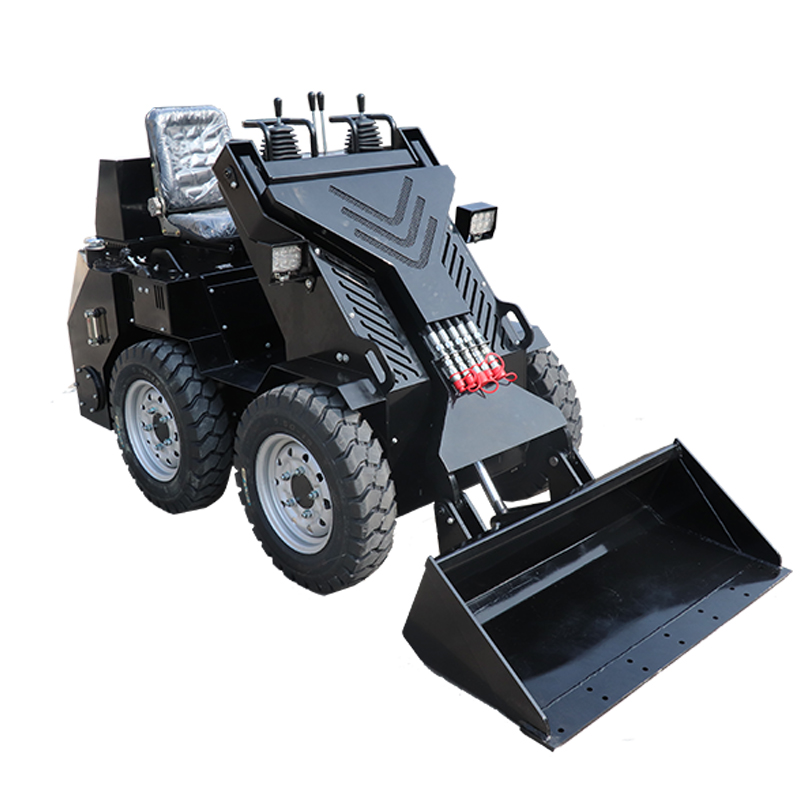

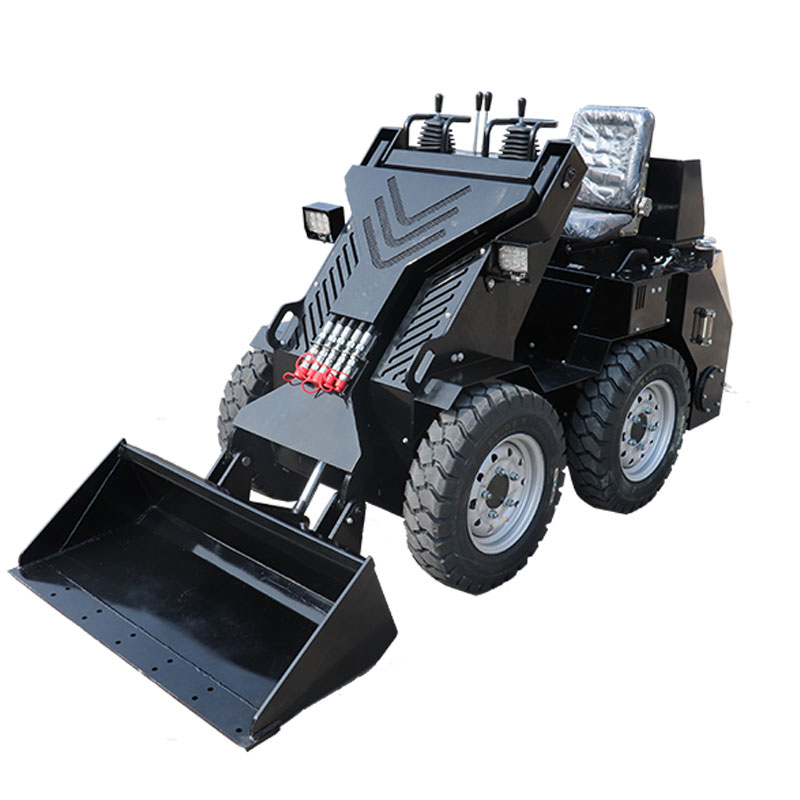

880 Ride-on Skid Steer Loader
The 880 Ride-on Skid Steer Loader, certified by both CE and ISO, is a powerful all – terrain solution. Powered by an 880 V – Twin OHV engine, it offers a net power of 16.8kW and a peak torque of 47Nm. The V – Twin 4 – stroke design boosts combustion efficiency by 18% and gravel traction by 60%, while the dual – mode electric start works well even at – 20℃. With a rated load capacity of 280kg and a maximum lift of 600kg, it can transport 15 tons of building materials per hour. The 2570mm lift height is 1.3 times the industry standard, and the sub – 0.5 – second hydraulic response meets ISO 6016 standards. The ROPS – certified cab has a noise level of ≤82dB(A), and the dual tank system includes 23L of fuel and 23L of hydraulic oil. Ideal for construction sites, agricultural facilities, and logistics warehouses, its special tires with an adhesion coefficient of ≥0.8 on mud, quick – change attachments, and precise operation make it a versatile choice for various tasks.
Core Parameter Table (Chinese-English)
880 Ride-on Skid Steer Loader | V-Twin OHV Engine | CE & ISO Certified | All-Terrain Engineering Solution | Global Stock Available
| Parameter Items | Specifications | International Certifications |
| Engine System | ||
| Engine Model | R740D V-Twin Gasoline Engine | ISO 8528-5 |
| Engine Type | 4-Stroke OHV | EPA Phase III |
| Bore×Stroke | 82×70mm (3.23×2.76in) | SAE J1349 |
| Net Power | 16.8kW (22.5HP) @3600rpm | CE EN 474-1 |
| Peak Torque | 47Nm (34.7lb-ft) @2500rpm | ANSI B56.6 |
| Fuel Consumption | ≤370g/kW·h (≤0.61lb/HP·h) | UL 142 |
| Compression Ratio | 8.5:1 | NFPA T2.13.1 |
| Overall Machine Performance | ||
| Rated Load Capacity | 280kg (617lbs) | ISO 6016:2008 |
| Maximum Lifting Capacity | 600kg (1,323lbs) | ASTM F3322 |
| Lift Height | 2570mm (101.2in) | – |
| Operating Speed | 0 – 9.5km/h (0 – 5.9mph) | – |
| Lift/Decent/Dump Time | 4.7s/4.0s/2.2s | – |
| Overall Machine Weight | 900kg (1,984lbs) | ISO 286-2 |
| Overall Dimensions | 2600×1140×2180mm (102.4×44.9×85.8in) | – |
Engineering Advantage Analysis
1. OHV Power Innovation
- V-Twin 4-stroke design enhances combustion efficiency by 18%.
- 47Nm high torque output boosts traction on gravel surfaces by 60%.
- Dual-mode electric start system adapts to extremely low temperatures down to -20℃.
2. Precise Operation Capability
- 2570mm industrial-grade lift height, 1.3 times the industry standard.
- Sub-0.5-second hydraulic response meets ISO 6016 dynamic accuracy standards.
- 50 – 13 special tires ensure an adhesion coefficient ≥0.8 on muddy surfaces.
3. Ergonomic Design
- ROPS-certified cab with noise level ≤82dB(A).
- Dual independent tank system (23L fuel + 23L hydraulic oil).
- LED operation meter displays real-time fuel level, water temperature, and pressure.
Global Application Scenarios
Construction Sites
- Transports 15 tons of building materials per hour (compatible with 0.2m³ standard buckets).
- 2180mm lift height meets the loading and unloading requirements of 3-layer shelves.
Agricultural Facilities
- Enables rapid stacking of silage (lifting speed: 4.7 seconds per cycle).
- Wetland tire design improves passability in swamps by 55%.
Logistics Warehouses
- Standardized pallet handling of 280kg with an error margin of ±2%.
- Quick-change attachment interface allows switching between fork frames and snow blades within 5 minutes.
