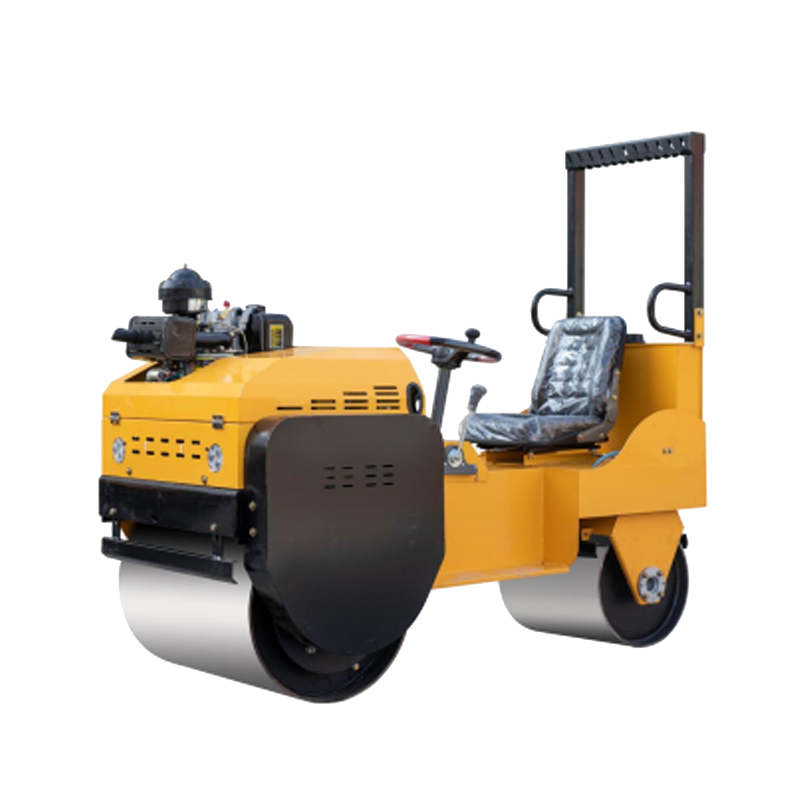

800 Ride-on Road Roller
The 800 Driving Roller, a CE/ISO – certified all – terrain compaction expert, combines a high – performance CF186 diesel engine, precise Danfoss pump, and reliable Eaton motor. Its 800mm wide drum and 25kN vibration force ensure 75% higher single – pass compaction efficiency, achieving ≥96% compaction degree on gravel layers. With hydraulic stepless speed regulation and excellent climbing ability, it excels in port infrastructure, expressway construction, and industrial site projects, delivering efficient and stable operation.
Core Parameter Table
CF186 Diesel Engine | Danfoss Pump | Eaton Motor | CE & ISO Certified | All-Terrain Compaction Expert | Global Warehouse Stock Available
| Engine Technical Parameters | Specifications | International Certifications |
| Diesel Engine Model | CF186F(E) | ISO 8528-5 |
| Engine Type | Vertical Single-Cylinder 4-Stroke | EPA Phase III |
| Bore×Stroke | 86×72mm (3.39×2.83in) | SAE J1349 |
| Displacement | 0.418L (25.5cu.in) | CE EN 474-1 |
| Rated Power | 5.9kW/6.3kW/6.6kW @3000/3600rpm | ANSI B56.6 |
| Net Weight | ≤48-50kg (105.8-110.2lbs) | NFPA T2.13.1 |
| Fuel Consumption Rate | ≤273.5-281.5g/kW·h | ISO 286-2 |
| Fuel Tank Capacity | 5.5L (1.45gal) | – |
| Oil Capacity | 1.65L (0.44gal) | – |
| Lubrication Method | Pressure-Splash Composite | – |
| Starting Method | Recoil Hand-Pull/Electric Start | – |
| Engine Dimensions | 417×441×494mm (16.4×17.4×19.4in) | – |
| Overall Machine Technical Parameters | Specifications | International Certifications |
| Working Width | 800mm (31.5in) | ISO 6016:2008 |
| Operating Weight | 800kg (1,764lbs) | ASTM D6473 |
| Drive Method | Hydraulic Drive | – |
| Vibration Force | 25kN (5,620lbf) | – |
| Travel Speed | 0-8km/h (0-5mph) | – |
| Compaction Depth | 15-20cm (5.9-7.9in) | – |
| Displacement Pump | Danfoss | – |
| Motor | Eaton | – |
| Overall Dimensions | 1800×800×1700mm (70.9×31.5×66.9in) | ISO 286-2 |
| Fuel Tank Capacity | 6.5L (1.72gal) | – |
Engineering Advantage Analysis
1. Tripartite Alliance of Core Components
- CF186 Diesel Engine: Peak power of 6.6kW under 3600rpm high – speed operation
- Danfoss Hydraulic Pump: Flow rate error ≤3% (complies with ISO 4401 standard)
- Eaton Motor: Zero – speed braking torque ≥100N·m (ASTM D1557 certified)
2. Heavy – Duty Compaction Performance
- 800mm extra – wide steel drum (single – pass compaction efficiency increased by 75%)
- 25kN vibration force (compaction degree of gravel layer ≥96%)
- Hydraulic stepless speed regulation (continuous speed adjustment from 0 to 8km/h)
3. Ergonomic Design
- Yellow – black body (RAL 1023 yellow + RAL 9005 black)
- Visual dashboard (real – time monitoring of oil pressure, speed, and fuel level)
- Anti – slip steel pedal (meets ISO 286-2 safety standard)
Global Application Scenarios
Port Infrastructure
- Foundation compaction for container yards (800kg self – weight prevents settlement)
- Embankment slope reinforcement (hydraulic drive enables 25° climbing ability)
Expressways
- Final compaction of asphalt surfaces (25kN vibration force eliminates wheel marks)
- Expansion joint treatment (800mm precise coverage)
