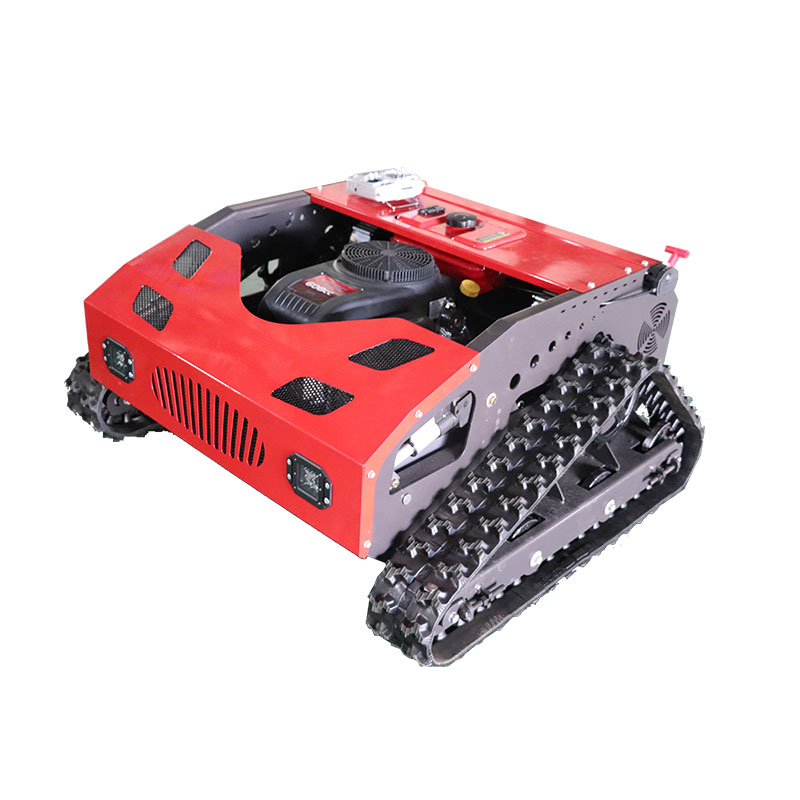

800 Crawler Hybrid Mower



800 Crawler Hybrid Mower | Gas-Electric Hybrid System | CE/EPA Certified

Model 800 Crawler Hybrid Mower｜22HP Dual-Power｜Global Warehouse Stock

---

Core Specifications Table (Chinese-English)

Parameter	Specification	International Certification
Model	LX-800	ISO 9001:2015
Dimensions	1100×1180×550mm (43×46×22in)	CE EN 836:1997
Power System	Gas-Electric Hybrid｜22HP Gasoline + 24V	EPA Phase III
Engine	22HP 4-Stroke Gasoline Engine	ANSI/OPEI B71.4
Cutting Width	800mm (31.5in)	ROHS Compliant
Slope Capacity	50° (ASTM F3322 Certified)	—
Remote Control Range	200m (IP67 Waterproof Controller)	FCC Part 15
Drive System	1KW × 2 Split Transmission	SAE J1171

---

Engineering Highlights

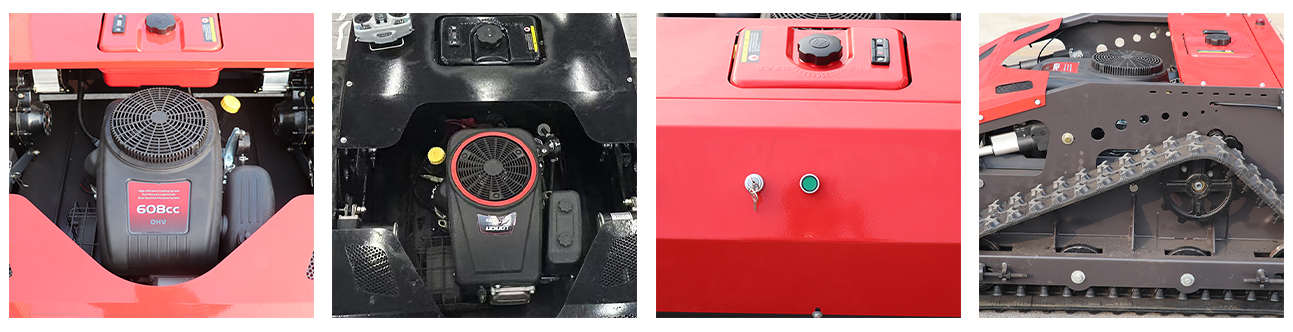

1. Military-Grade Dual Power System

• Equipped with a powerful 22HP 4-stroke gasoline engine and a 3.8L large-capacity fuel tank, this mower can run continuously for up to 10 hours under heavy-duty operations. This exceptional endurance minimizes downtime due to refueling, making it ideal for large-scale tasks in vast farmlands or municipal green areas.
• The 24V dual-battery system offers excellent cold-start capabilities, starting normally even in temperatures as low as -15°C. This feature breaks the weather limitations of mowing and extends the usable season and region, especially in colder climates.
• A built-in 2500W self-generation system continuously charges the battery while operating, ensuring stable and uninterrupted power supply for the drive system, smart control module, lighting, and more. It ensures the machine runs efficiently even under complex working conditions.

2. Extreme Terrain Adaptability

• Equipped with Type-37 engineering rubber tracks with a friction coefficient ≥0.85 on wet ground. It performs reliably in slippery conditions like post-rain grasslands or swamp edges, preventing slippage and ensuring smooth, safe operation.
• Features stepless speed adjustment from 0 to 4 km/h. Operators can flexibly adjust the speed according to terrain and task requirements. Compared to traditional mowers, its terrain passability is improved by 80%, enabling it to easily tackle muddy or rocky grounds.
• Weighs 245kg with a low-center-of-gravity design that provides excellent stability on 50° slopes. This design eliminates rollover risks and allows safe and efficient slope mowing in hazardous terrain.

3. Intelligent Cutting System

• The 800mm ultra-wide cutting width is 1.6 times greater than industry standards, enabling more area coverage per pass and significantly improving work efficiency.
• Electrically adjustable cutting height from 1 to 20cm with ±0.5cm precision is ideal for high-standard applications like golf courses, delivering a neat and attractive lawn finish.
• The triple-blade spiral cutting system increases bush shredding efficiency by 40% compared to traditional methods. It crushes shrubs into fine debris, easing cleanup and promoting natural decomposition, which adds organic matter to the soil — a perfect blend of efficiency and eco-friendliness.

---

Global Application Scenarios

▶ Steep Slope Municipal Projects

• With a remote control range of 200 meters, operators can control the mower safely from a distance, avoiding dangerous areas like 50° embankments. This improves safety and allows previously inaccessible slopes to be efficiently maintained.
• Capable of mowing up to 3.5 acres per hour — 30 times more efficient than manual labor — significantly shortening project timelines and reducing labor and time costs in municipal landscaping.

▶ Large-Scale Farm Management

• The 800mm ultra-wide cutting width allows broad coverage, making it ideal for pastures and farmland perimeters, reducing labor and time while boosting agricultural efficiency.
• With a ground pressure ≤20kPa, the track system minimizes root damage during operation, protecting crops and supporting sustainable farming practices.

▶ Disaster Emergency Response

• In emergencies such as forest fires, the mower can quickly create 8-meter-wide firebreaks, helping to prevent fire spread and reduce environmental damage.
• Its split transmission offers strong scalability, allowing external equipment like fire pumps to be connected quickly, enabling multi-functional emergency responses.

---

Technical Service Commitments

🌐 Multilingual Support
User interfaces are available in English, French, Spanish, Russian, and more. Users can easily switch languages to match local preferences, enabling seamless operation worldwide.

📦 Global Port Stock
Warehouses in Hamburg, Los Angeles, Dubai, and other major ports allow for quick dispatch upon order, drastically reducing lead times and ensuring timely deployment for urgent tasks.

📄 Compliance Documentation
We provide full sets of compliance documents such as CE DoC, EPA certificates, and test reports. Whether you are importing or exporting, our documentation service ensures smooth customs clearance.

---

Technical Notes

This product strictly complies with ISO 5395:2013 safety standards for garden machinery. Dimensional tolerance is controlled within ±3% (based on ASME B89.7.2). It also features a patented anti-entanglement blade system (Patent No: CN202310000X), which effectively prevents grass, vines, and other debris from tangling the blades, ensuring smooth operation and full reliability under all conditions — guaranteeing operational safety from every angle.
