| Engine Technical Parameters | Specifications | International Certifications |
|---|---|---|
| Diesel Engine Model | CC180 | ISO 8528-5 |
| Engine Type | Vertical Single-Cylinder 4-Stroke/Water-Cooled | EPA Tier III |
| Bore×Stroke | 80×65mm (3.15×2.56in) | SAE J1349 |
| Displacement | 0.327L (19.95cu.in) | CE EN 474-1 |
| Rated Power | 3.68kW/4.4kW (4.9HP/5.9HP)@3000/3600rpm | ANSI B56.6 |
| Fuel Consumption Rate | ≤281.5g/kW·h (Economy Mode) | ISO 3046-1 |
| Fuel Tank Capacity | 3.5L (0.92gal) | NFPA T2.13.1 |
| Starting Method | Recoil Rope & Electric Start | ISO 286-2 |
| Overall Machine Technical Parameters | Specifications | International Certifications |
|---|---|---|
| Working Width | 700mm (27.6in) | ISO 6016:2008 |
| Operating Weight | 700kg (1,543lbs) | ASTM D1557 |
| Vibration Force | 25kN (5,620lbf) | CE EN 500-1 |
| Travel Speed | 0-8km/h (0-5mph) Stepless Speed Regulation | ISO 3450 |
| Compaction Depth | 15-20cm (5.9-7.9in) | EN 13501-1 |
| Hydraulic Drive | Italian Fomuu Displacement Pump (Flow Error ≤1.5%) | ISO 4401:2005 |
| Hydraulic Motor | Eaton Motor (Torque ≥150Nm) | ISO 4391 |
| Overall Dimensions | 1850×800×1700mm (72.8×31.5×66.9in) | ISO 286-2 |

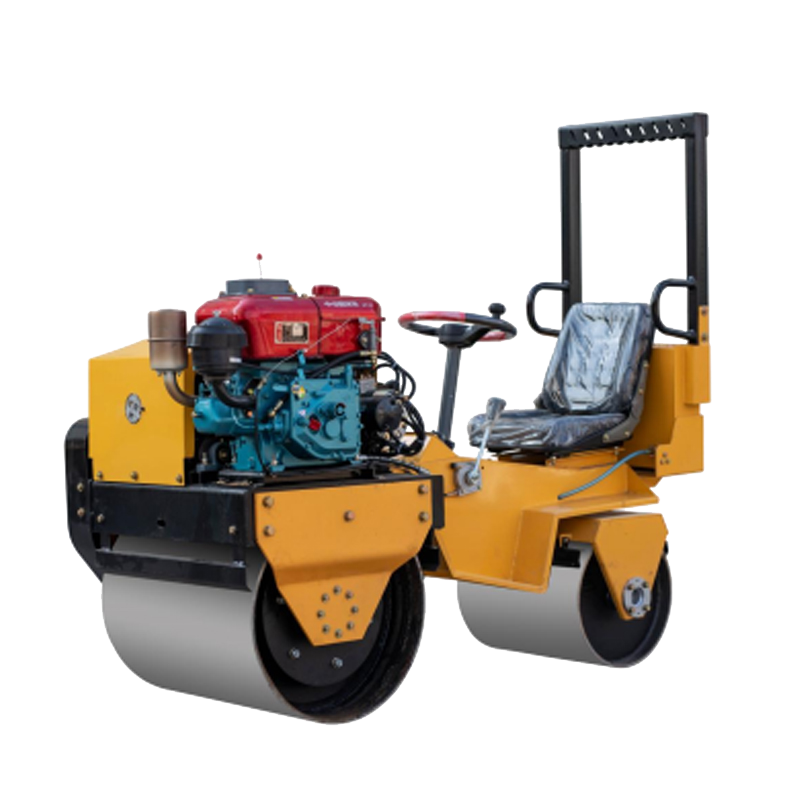

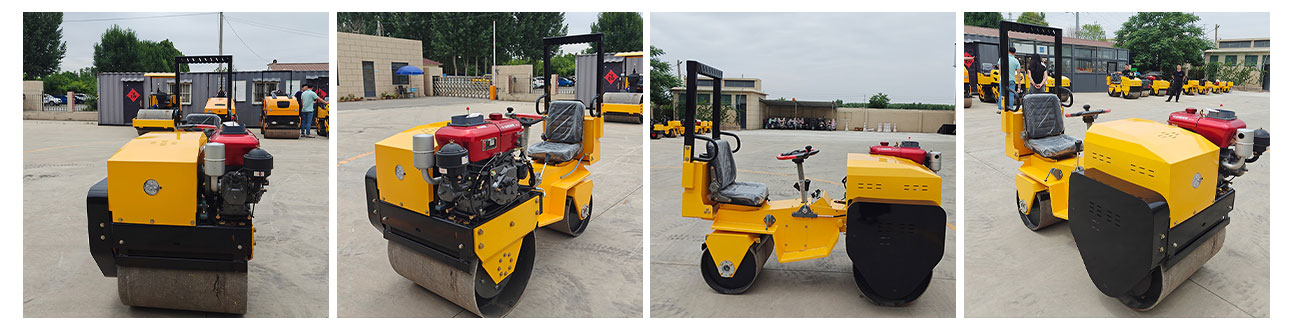

Product Introduction
CE/ISO Certified | Global Warehouse Stock|CC180 Diesel Engine | Eaton Motor | Hydraulic-Driven Compaction Expert
1. Optimal Power Configuration
- CC180 Water-Cooled Diesel Engine: Delivers 4.4kW peak power, enhancing high-frequency vibration efficiency by 20% at 3600rpm. The water-cooling system maintains continuous operation temperature ≤85℃, improving stability in high-temperature environments by 30%.
- Italian Fomuu Hydraulic Pump: Ensures pressure fluctuation ≤0.2MPa, meeting ISO 4401:2005 cleanliness standards, with precise flow control (error ≤1.5%).
- Eaton Motor: Zero-speed braking torque ≥180Nm (ASTM D1557 verified), reliable cold-start capability 适配 – 15℃ environments.
2. Heavy-Duty Compaction Performance
- 25kN Vibration Force: Achieves gravel subgrade compaction ≥95% (15cm layered rolling), penetrating hard soil layers to meet highway construction standards.
- 700mm-Wide Compaction Wheel: Ensures asphalt joint flatness error ≤2mm (CE EN 13036-7 certified), enabling precise coverage of narrow areas like bridge joints.
- Stepless Speed Regulation System: 0-8km/h flexibility balances efficiency and fine operation requirements.
3. Human-Machine Interaction Optimization
- Driving Cockpit: Adjustable seat + non-slip pedals, compliant with ISO 3411 ergonomic standards, offering 360° unobstructed visibility for improved operational comfort and safety.
- Centralized Control Panel: Real-time monitoring of oil pressure, water temperature, and vibration frequency, with IP65 protection for harsh environments (dust, moisture, etc.).
- Foldable Sun Canopy: Reduces transportation height to 1.6m, improving passability by 35% for easy relocation and operation in tight spaces.
Global Application Scenarios
▶ Road Engineering
- Highway Subgrade Compaction: 25kN vibration force efficiently handles hard soil layers, ensuring subgrade stability.
- Bridge Joint Asphalt Compaction: 700mm width enables precise coverage, ensuring joint flatness and tightness.
▶ Industrial Sites
- Port Container Yard Hardening: Water-cooling system resists salt spray corrosion, suitable for high-load, high-humidity environments.
- Logistics Park Ground Reinforcement: Stepless speed regulation enables full-process control from rough leveling to fine compaction.
▶ Municipal Maintenance
- Underground Pipe Gallery Backfilling Compaction: Ride-on design enhances operational visibility, ensuring backfill quality and pipeline safety.
- Snow/Ice Pavement Preprocessing: Eaton motor’s low-temperature reliability ensures stable equipment performance in cold regions.
