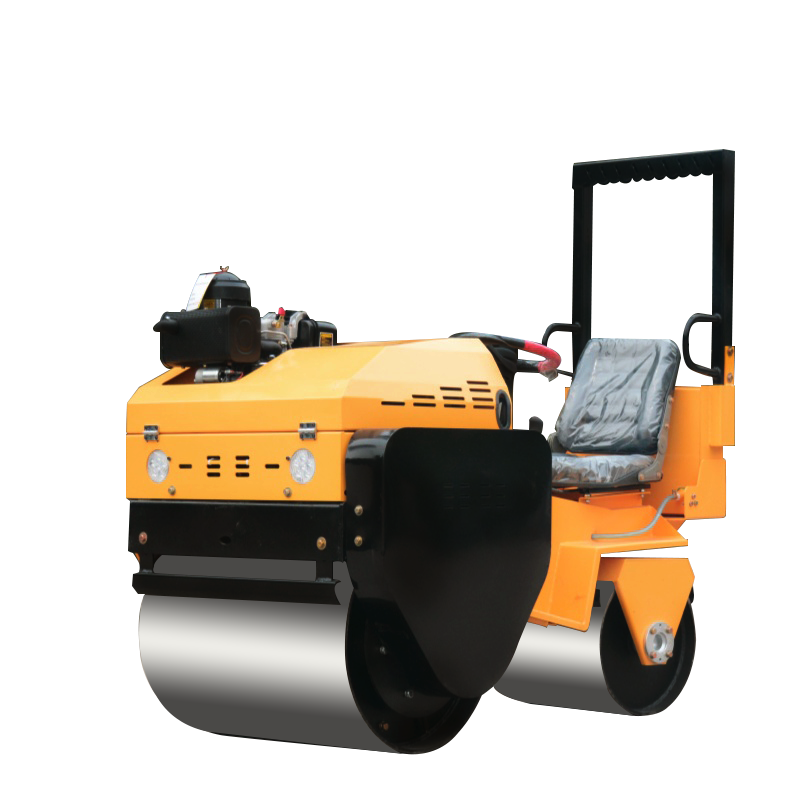

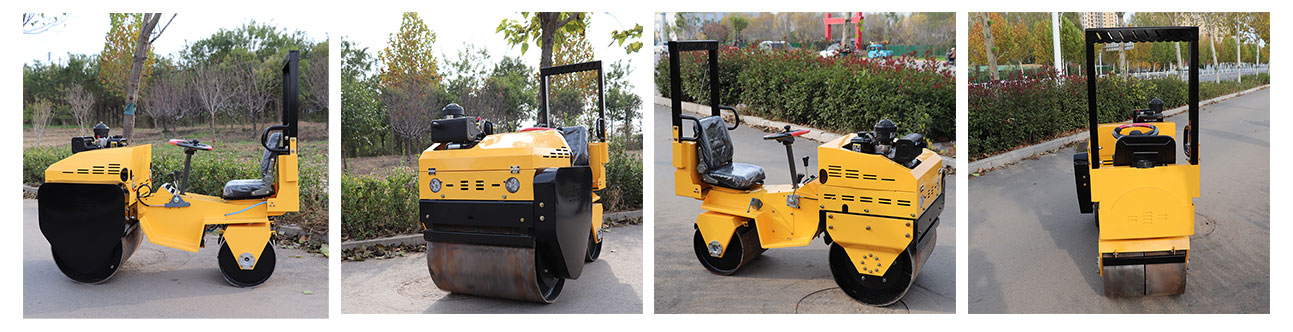

700-seat ride-on road roller (air-cooled)

Product Introduction

CF178F(E) Diesel Engine | Italian Pump + Eaton Motor |CE/ISO Dual Certification | Global Warehouse Stock |The 700 Driving Roller (Air-Cooled) stands as a high-performance compaction solution, combining advanced components and robust certifications to meet diverse engineering needs.

High – end Power Configuration

• CF178 Diesel Engine: Delivers a peak power of 4kW, boosting high-frequency vibration efficiency by 25% at 3600rpm, ensuring rapid and effective compaction.
• Fomuu Hydraulic Pump, Italy: Features dynamic flow compensation with pressure fluctuations ≤0.3MPa, certified by ISO 4401, providing stable and precise hydraulic performance.
• Eaton Motor: Offers a zero – speed braking torque ≥150Nm, verified by ASTM D1557, ensuring reliable operation and safety.

Precise Compaction Control

• 20kN Vibration Force: Achieves a gravel mixture compactness ≥92% with 15cm layered rolling, ensuring strong and stable foundations.
• 700mm – wide Compaction Wheel: Keeps the flatness error of asphalt joint treatment ≤3mm, meeting the EN 13036 – 7 standard for high-quality road surfaces.
• Forced Air – Cooling System: Operates continuously at 45℃ ambient temperature with an internal temperature ≤95℃, outperforming similar models in high-temperature stability.

Ergonomic Design

• Foldable Driving Seat: Reduces transportation height to 1.6m, enhancing passability by 30% for easy maneuvering and transportation.
• Shock – absorbing Rubber Handle: Maintains an operation vibration value <2.5m/s², certified by EN 1032:2008, minimizing operator fatigue.
• Integrated Dashboard: Monitors fuel level, water temperature, and vibration frequency in real-time with an IP54 protection rating, ensuring convenient and safe operation.

Global Application Scenarios

▶ Municipal Road Construction

• Sidewalk Permeable Brick Foundation Compaction: The 700mm-wide compaction width provides precise coverage, ensuring even and stable compaction.
• Curbstone Asphalt Repair: Stepless speed regulation allows for fine-tuning of the rolling speed, enabling accurate and efficient repair work.

▶ Construction Sites

• Foundation Pit Backfill Soil Compaction: The 20kN vibration force quickly penetrates loose soil layers, ensuring solid and stable backfill.
• Small Parking Lot Gravel Layer Treatment: With a 700kg self-weight, it protects underground pipelines while effectively compacting gravel layers.

▶ Agricultural Facilities

• Livestock Farm Hardened Ground Construction: The air-cooled engine resists dust and humid environments, making it ideal for agricultural applications.
• Greenhouse Irrigation Canal Reinforcement: The hydraulic drive adapts well to frequent start-stop conditions, ensuring reliable performance during construction and reinforcement tasks.
