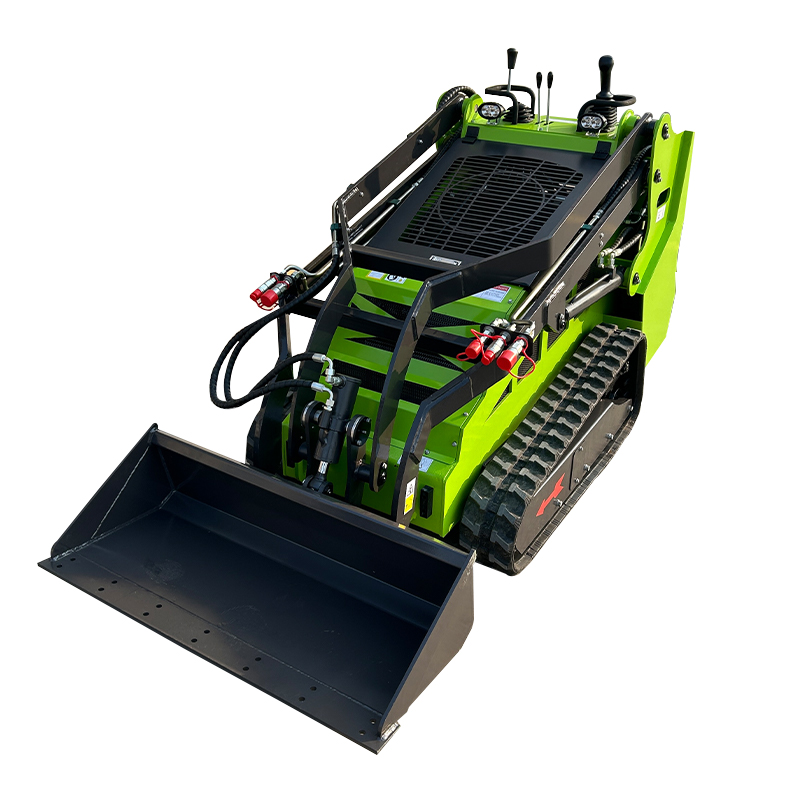

690 Crawler Skid Steer Loader
The 690 Crawler Skid Steer Loader, a CE/ISO-certified all – terrain marvel, combines robust performance with intelligent features. Powered by a Honda 690 V – Twin gasoline engine delivering 13kW and 38.6Nm of torque, it starts instantly via electric or emergency pull cord and runs for 8 hours on its 1.9L oil sump. With a 480kg rated load and 0.2m³ bucket, it handles 20 tons of waste per hour. Its 30% gradeability (16.7°) and ≥0.75 wetland friction coefficient, paired with a 1100kg low – center – gravity build, ensure stability on challenging terrains. Hydraulic controls offer 1 – second response times, 16MPa pressure with auto – shutoff, and dual – loop cooling. Ideal for municipal waste removal, agricultural silage transport, and disaster relief, this loader’s quick – attach hydraulic ports and turf – friendly tracks make it a versatile choice for diverse heavy – duty tasks.
Core Parameter Table
690 Crawler Skid Steer Loader | 30% Gradeability | CE & ISO Certified | All-Terrain Engineering Expert | Global Warehouse Stock Available
| Parameter Items | Specifications | International Certifications |
| Rated Loading Capacity | 480kg (1,058lbs) | ISO 6016:2008 |
| Bucket Volume | 0.2m³ (7.06cu.ft) | SAE J732 |
| Maximum Lifting Capacity | 800kg (1,763lbs) | CE EN 474-1 |
| Operating Speed | 0 – 5km/h (0 – 3.1mph) | ANSI B56.6 |
| Hydraulic Pressure | 16MPa (2,320psi) | NFPA T2.13.1 |
| Lift Cycle Time | 6.9s (lifting) | ISO 3449:2005 |
| Dump Cycle Time | 3.7s (lowering); 1.5s (dumping with overload protection) | EPA Tier III |
| Engine Model | Honda 690 Gasoline Engine | UL 142 (Certified Fuel Tank) |
| Engine Type | V-Twin 4-Stroke | – |
| Output Power | 13kW (17.4HP) @3600rpm | – |
| Peak Torque | 38.6Nm @2500rpm | – |
| Overall Dimensions | 2500×1110×1400mm (98.4×43.7×55.1in) | ISO 286-2 |
Engineering Advantage Analysis
1. Honda Power System
- Honda 690 V-Twin 4-stroke gasoline engine with 38.6Nm peak torque.
- Electric start responds within 1 second, complemented by an emergency pull cord.
- 9L large-capacity oil sump enables 8-hour continuous operation without maintenance.
2. All-Terrain Adaptation Design
- Stable operation on 30% (16.7°) gradients on gravel surfaces (ASTM D6473 certified).
- Green anti-corrosion coating and black engineering tracks ensure a friction coefficient ≥0.75 in wetlands.
- 1100kg self-weight combined with a low-center-of-gravity structure maintains a side tilt angle ≤1.2°.
3. Intelligent Hydraulic Control
- Hydraulic pilot control handle with an operating force ≤20N and red arrow-marked operation areas.
- Visual pressure monitoring with automatic shut-off at 16MPa overpressure.
- Dual-loop cooling system keeps the oil temperature stable at 60℃±5℃.
Global Application Scenarios
Municipal Engineering Maintenance
- Processes 20 tons of construction waste per hour (compatible with 0.2m³ buckets).
- Its 1400mm low profile allows passage through underground pipe network entrances.
Agricultural Parks
- Enables rapid silage transportation with a low fuel consumption of 3L/h.
- Tracks maintain ground pressure ≤25kPa to protect pasture turf.
Disaster Response
- Quickly opens rescue passages on 30% gradients.
- Hydraulic interfaces support external attachments like breaker hammers and fire pumps.
