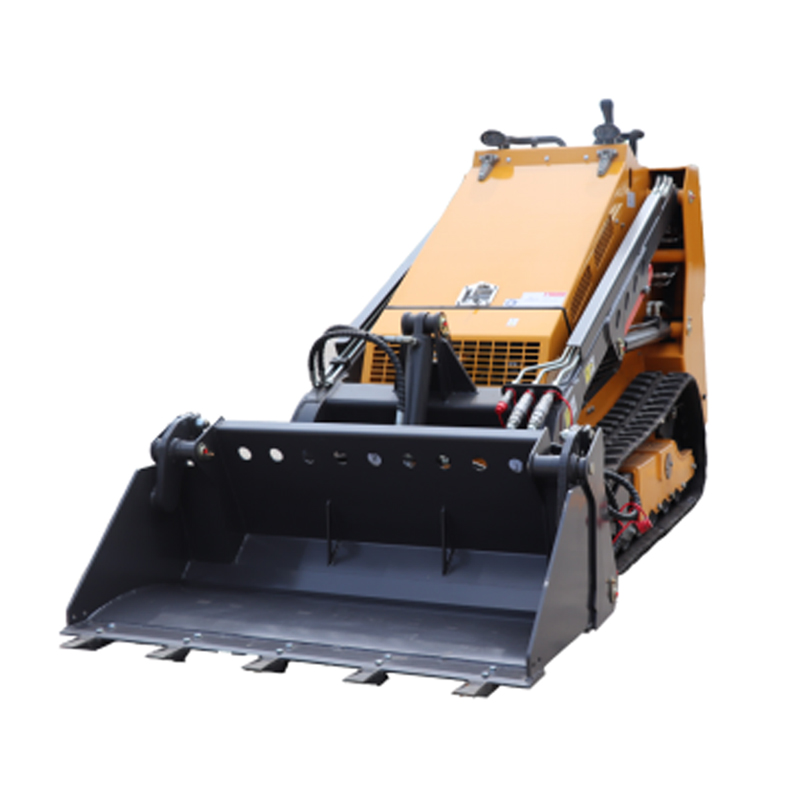

680 Crawler Skid Steer Loader
The 680 Crawler Skid Steer Loader, a CE/ISO-certified all – terrain workhorse, offers robust performance for diverse heavy – duty tasks. Powered by a Kubota D1105 diesel engine delivering 18.2kW and 70.4Nm of torque, it features Danfoss hydraulic motors and dual – mode control for precise operation or quick transit. With a 780kg rated load capacity—1.6 times the industry standard—and a 1200kg maximum lift, it can transport 35 tons of materials per hour. It excels on 30% gradients with its 1420kg low – center – gravity build and stable side tilt of ≤0.8°. The intelligent control system includes a 1 – second electric start, 17MPa overpressure protection, and LED status display. Ideal for construction sites, mines, and ports, its 0.2m³ bucket, quick – change attachments, and dust – proof cooling make it a reliable and versatile solution for heavy – load handling and tough – environment operations.
Core Parameter Table (Chinese-English)
680 Crawler Skid Steer Loader| 30% Gradeability| CE & ISO Certified | All-Terrain Engineering Solution| Global Stock Available
| Parameter Items | Specifications | International Certifications |
| Rated Loading Capacity | 780kg (1,719lbs) | ISO 6016:2008 |
| Bucket Volume | 0.2m³ (7.06cu.ft) | SAE J732 |
| Maximum Lifting Capacity | 1200kg (2,646lbs) | CE EN 474-1 |
| Operating Speed | 0 – 6km/h (0 – 3.7mph) | ANSI B56.6 |
| Hydraulic Pressure | 17MPa (2465psi) | NFPA T2.13.1 |
| Lift Cycle Time | 4.1s (lifting); 2.4s (lowering) | ISO 3449:2005 |
| Dump Cycle Time | 1.5s (with overload protection) | EPA Tier III |
| Engine Model | Kubota D1105 Diesel Engine | UL 142 (Certified Fuel Tank) |
| Engine Type | Water-cooled 3-Cylinder, 18.2kW/3000rpm | – |
| Peak Torque | 70.4Nm @2200rpm | – |
| Oil Capacity | 5.1L (1.35gal) | – |
| Overall Dimensions | 2400×1100×1400mm (94.5×43.3×55.1in) | ISO 286-2 |
Engineering Advantage Analysis
1. Kubota Power System
- Kubota D1105 industrial-grade 3-cylinder diesel engine with 70.4Nm peak torque.
- Danfoss hydraulic motors (fully certified by DANFOSS).
- Dual-mode control: 0 – 3km/h for precise operation; 3 – 6km/h for quick transit.
2. Heavy-duty Operation Capability
- 780kg rated loading capacity, 1.6 times the industry standard.
- Stable operation on 30% (16.7°) gradients on gravel surfaces (ASTM D6473 tested).
- 1420kg self-weight with a low-center-of-gravity design, maintaining a side tilt angle ≤0.8°.
3. Intelligent Control Module
- Electric start responds within 1 second, with a backup pull cord starter.
- Visual hydraulic monitoring with automatic shut-off at 17MPa overpressure.
- LED operation display showing fuel level, water temperature, and pressure.
Global Application Scenarios
Heavy-duty Construction Sites
- Transports 35 tons of building materials per hour (compatible with 0.2m³ standard buckets).
- Its 1400mm height allows passage through underground garage entrances.
Mining Operations
- 1200kg lifting capacity is suitable for mining pallets.
- Dust-proof cooling system enables continuous operation in 50℃ environments.
Port Logistics
- Quick attachment change (switches between fork frames and drills within 5 minutes).
- Yellow body with reflective markings (meets ANSI/ISEA 107 visibility standards).
