| Engine Technical Parameters | Specifications | International Certifications |
|---|---|---|
| Diesel Engine Model | CF178F(E) | ISO 8528-5 |
| Engine Type | Vertical Single-Cylinder 4-Stroke/Air-Cooled | EPA Tier III |
| Bore×Stroke | 78×62mm (3.07×2.44in) | SAE J1349 |
| Displacement | 0.296L (18.06cu.in) | CE EN 474-1 |
| Rated Power | 3.68kW/4kW (4.9HP/5.4HP) @3000/3600rpm | ANSI B56.6 |
| Fuel Consumption Rate | ≤276.1g/kW·h (Economy Mode) | ISO 3046-1 |
| Fuel Tank Capacity | 3.5L (0.92gal) | NFPA T2.13.1 |
| Starting Method | Recoil Rope & Electric Start | ISO 286-2 |
| Overall Machine Technical Parameters | Specifications | International Certifications |
|---|---|---|
| Working Width | 600mm (23.6in) | ISO 6016:2008 |
| Operating Weight | 600kg (1,323lbs) | ASTM D1557 |
| Vibration Force | 20kN (4,496lbf) | CE EN 500-1 |
| Travel Speed | 0 – 8km/h (0 – 5mph) Stepless Speed Regulation | ISO 3450 |
| Compaction Depth | 15 – 20cm (5.9 – 7.9in) | EN 13501-1 |
| Hydraulic Drive | Italian Displacement Pump (Flow Error ≤2%) | ISO 4401:2005 |
| Overall Dimensions | 1160×730×1550mm (45.7×28.7×61.0in) | ISO 286-2 |
| Fuel Tank Capacity | 16L (4.23gal) | SAE J20 |
Product Introduction

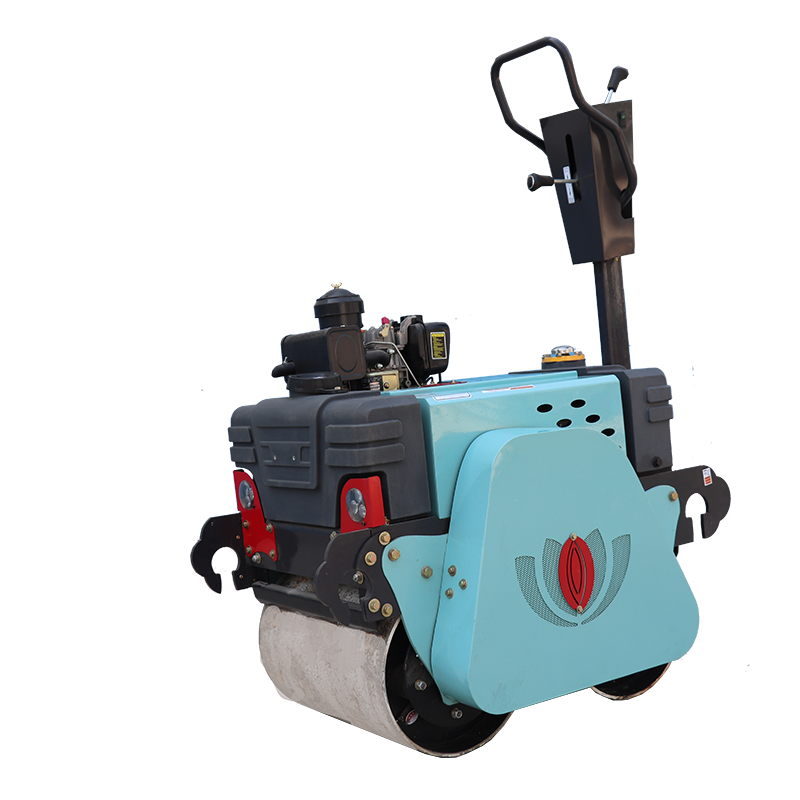

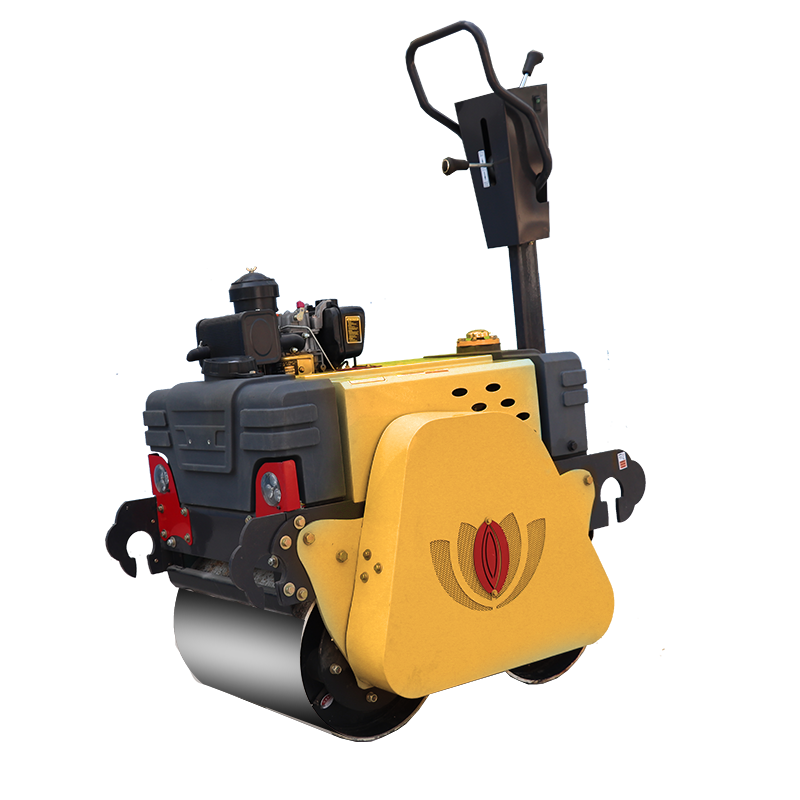

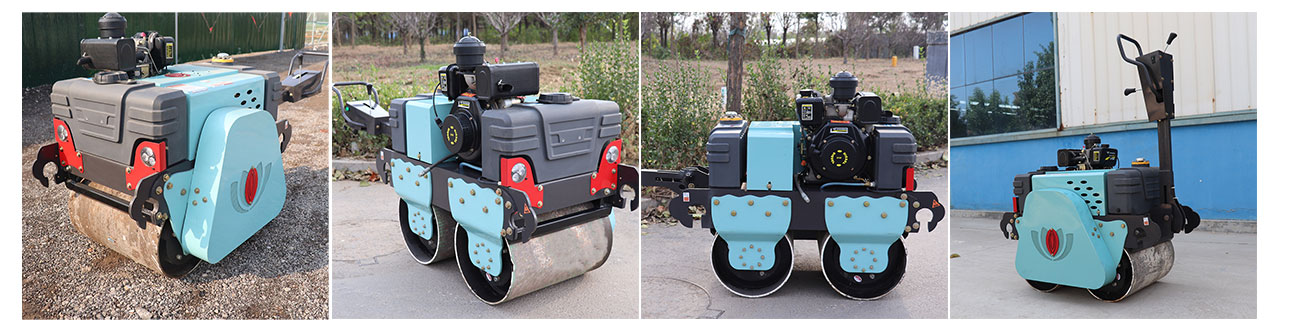

600 Two-Wheeled Walk-Behind Roller | CF178F(E) Diesel Engine | CE & ISO Certified | Compact Compaction Solution | Global Warehouse Stock Available
1. Optimal Power Matching
- CF178 diesel engine delivers 4kW peak power, enhancing high-frequency compaction efficiency by 30% at 3600rpm.
- Italian hydraulic pump ensures pressure fluctuation ≤0.5MPa, meeting ISO 4401:2005 cleanliness standards.
- Dual-start mode enables one-click electric start in -20℃ low-temperature environments, with protection level compliant with EN 60034-1.
2. Precise Compaction Control
- Stepless speed regulation system offers speed adjustment accuracy of ±0.2km/h, ensuring asphalt layer flatness deviation ≤3mm.
- 20kN high-frequency vibration force achieves gravel subgrade compaction ≥93% (verified by ASTM D1557).
- 600mm-wide rollers feature synchronized vibration with a phase difference ≤5°.
3. Human-Machine Collaboration Optimization
- Foldable operating lever enables switching between operation and transportation modes within ≤30 seconds, complying with ISO 12100-2 safety standards.
- Splash guard design reduces mud splashing by 80% (IP54 protection certified).
- Visible fuel gauge ensures fuel level error ≤3% (accuracy certified by EN 13309).
Global Application Scenarios
Municipal Road Maintenance
- Asphalt pavement repair: 600mm roller width precisely covers areas around manhole covers.
- Compaction of permeable brick foundations on sidewalks (15cm layered rolling).
Construction Sites
- Compaction of backfilled soil in trenches: 20kN vibration force prevents settlement.
- Compaction of gravel layers in small parking lots (0 – 5mph stepless speed regulation).
Agricultural Facilities
- Reinforcement of greenhouse foundations: 600kg self-weight protects underground pipelines.
- Treatment of hardened surfaces in livestock farms: air-cooled diesel engine resists dusty environments.
