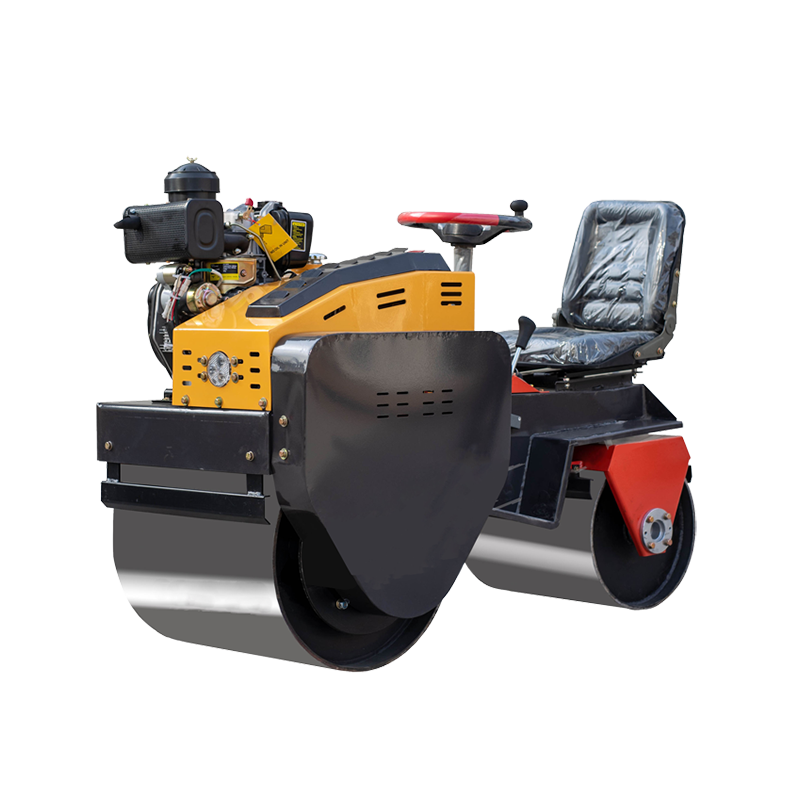

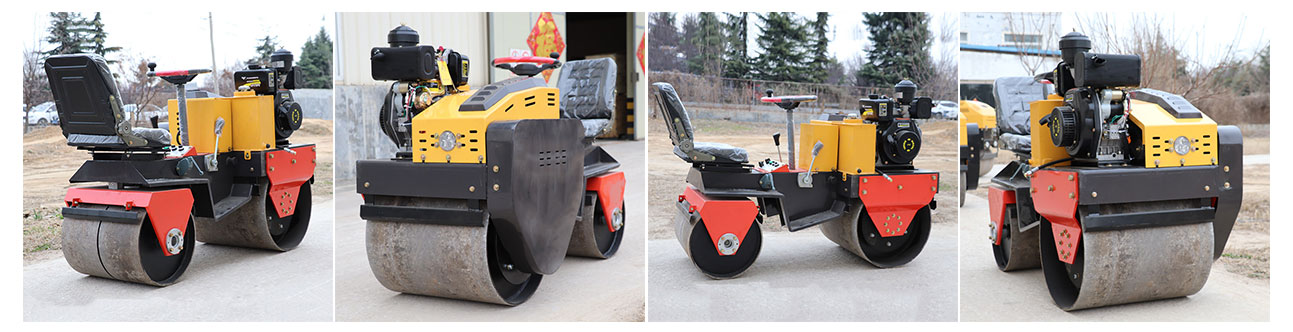

600 Two-Wheel Roller

CF178 Diesel Engine/Italian Joint Venture Pump

CE & ISO Certified | All-Terrain Compaction Expert

Global Warehouse Stock Available

Core Parameter Table (Chinese-English)



Engine Technical Parameters	Specifications	International Certifications
Diesel Engine Model	CF178F(E)	ISO 8528-5
Engine Type	Vertical Single-Cylinder 4-Stroke	EPA Phase III
Bore×Stroke	78×62mm (3.07×2.44in)	SAE J1349
Displacement	0.296L (18.06cu.in)	CE EN 474-1
Rated Power	3.68kW/4kW @3000/3600rpm	ANSI B56.6
Net Weight	≤33-35kg (72.8-77.2lbs)	NFPA T2.13.1
Fuel Consumption Rate	≤276.1/285.6g/kW·h	ISO 286-2
Fuel Tank Capacity	3.5L (0.92gal)	–
Oil Capacity	1.1L (0.29gal)	–
Lubrication Method	Pressure-Splash Composite	–
Starting Method	Recoil Hand-Pull/Electric Start	–
Engine Dimensions	383×421×450mm (15.1×16.6×17.7in)	–



Overall Machine Technical Parameters	Specifications	International Certifications
Working Width	600mm (23.6in)	ISO 6016:2008
Operating Weight	600kg (1,323lbs)	ASTM D6473
Drive Method	Front-Wheel Drive	–
Vibration Force	20kN (4,496lbf)	–
Travel Speed	0-8km/h (0-5mph)	–
Compaction Depth	20-25cm (7.9-9.8in)	–
Displacement Pump	Italian Joint Venture Pump	–
Motor	Joint Motor	–
Overall Dimensions	1650×680×1350mm (65.0×26.8×53.1in)	ISO 286-2
Fuel Tank Capacity	3.5L (0.92gal)	–

Engineering Advantage Analysis

1. Golden Power Combination

• CF178 Diesel Engine: Delivers a high power output of 4kW under 3600rpm efficient operation.
• Italian Joint Venture Pump: Flow rate error ≤3% (complies with ISO 4401 standard).
• Joint Motor: Zero-speed braking torque ≥80N·m (ASTM D1557 certified).

2. High-Efficiency Compaction Performance

• 600mm ultra-narrow working width (curb-hugging accuracy within ±2cm).
• 20kN vibration force (compaction degree of gravel layer ≥95%).
• Front-wheel drive system (terrain adaptability in complex areas increased by 40%).

3. Ergonomic Design

• Yellow-Black body (RAL 1023 yellow + black seats/control console).
• Foldable anti-slip pedal (meets ISO 286-2 safety standard).
• Visual dashboard (real-time monitoring of oil pressure, speed, and water temperature).

Global Application Scenarios

Municipal Roads

• Layered compaction of sidewalks and bike lanes (20 – 25cm layered operation).
• Dense foundation for blind paths (controlled by stepless speed regulation at 0 – 8km/h).

Agricultural Infrastructure

• Hardening of farmland tractor roads (600kg self-weight prevents vehicle sinking).
• Embankment slope reinforcement (front-wheel drive enables 25° climbing ability).

Post-Disaster Reconstruction

• Foundation repair of collapsed road sections (rapid response of hydraulic system).
• Emergency construction of temporary access roads (recoil hand-pull start, no power supply dependence).
