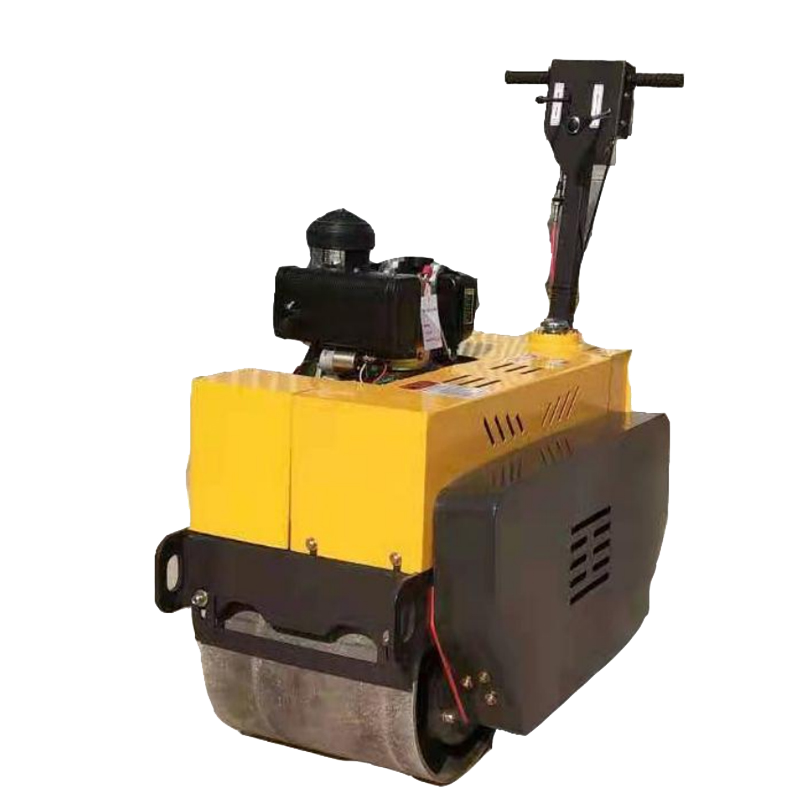

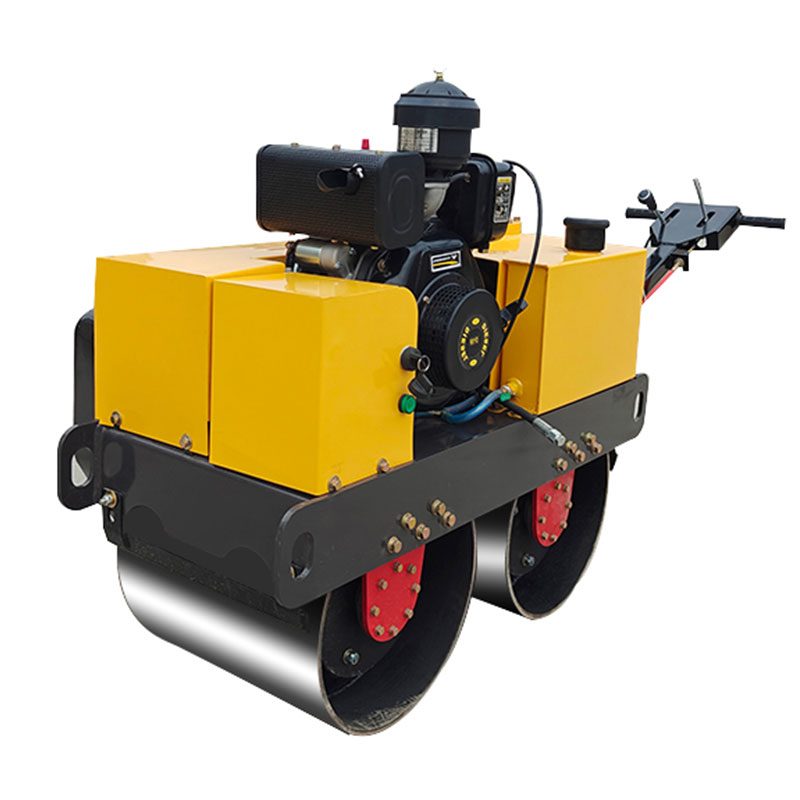

450 double-wheel hand-operated road rollers
The 450 Twin Wheels Roller, a CE/ISO-certified all-terrain compaction expert, is powered by a CF178 diesel engine. With a narrow 450mm working width and a lightweight 400kg body, it offers excellent maneuverability in tight spaces, enhancing passability in narrow alleys by 75%. The 18kN vibration force ensures ≥90% compaction of gravel layers. It features a reliable power combination with a domestic gear pump (pressure fluctuation ≤5%) and a hydraulic motor (zero-speed braking torque ≥50N·m). Ideal for municipal alleys, garden landscapes, and post-disaster emergencies, its ergonomic design includes a yellow-black body, visual gauges, and an anti-slip pedal for safe and efficient operation.
Core Parameter Table (Chinese-English)
CF178 Diesel Engine | CE & ISO Certified | All-Terrain Compaction Expert | Global Warehouse Stock Available
|
Engine Technical Parameters
|
Specifications
|
International Certifications
|
|
Diesel Engine Model
|
CF178 (E)
|
ISO 8528-5
|
|
Engine Type
|
Vertical Single-Cylinder 4-Stroke
|
EPA Phase III
|
|
Bore×Stroke
|
78×62mm (3.07×2.44in)
|
SAE J1349
|
|
Displacement
|
0.296L (18.06cu.in)
|
CE EN 474-1
|
|
Rated Power
|
3.68kW/4kW @3000/3600rpm
|
ANSI B56.6
|
|
Net Weight
|
≤33-35kg (73-77lbs)
|
–
|
|
Fuel Consumption Rate
|
≤276.1-285.6g/kW·h
|
NFPA T2.13.1
|
|
Fuel Tank Capacity
|
3.5L (0.92gal)
|
–
|
|
Oil Capacity
|
1.1L (0.29gal)
|
–
|
|
Lubrication Method
|
Pressure-Splash Composite
|
–
|
|
Starting Method
|
Recoil Hand-Pull/Electric Start
|
–
|
|
Engine Dimensions
|
383×421×450mm (15.1×16.6×17.7in)
|
ISO 286-2
|
|
Overall Machine Technical Parameters
|
Specifications
|
International Certifications
|
|
Working Width
|
450mm (17.7in)
|
ISO 6016:2008
|
|
Vibration Force
|
18kN (4,046lbf)
|
ASTM D6473
|
|
Drive Method
|
Hydraulic Drive
|
–
|
|
Travel Speed
|
0-8km/h (0-5mph)
|
–
|
|
Operating Weight
|
400kg (882lbs)
|
–
|
|
Displacement Pump
|
Renowned Domestic Gear Pump
|
–
|
|
Motor
|
Renowned Domestic Hydraulic Motor
|
–
|
|
Compaction Depth
|
10-20cm (3.9-7.9in)
|
–
|
|
Fuel Tank Capacity
|
12L (3.17gal)
|
–
|
|
Overall Dimensions
|
1200×650×1400mm (47.2×25.6×55.1in)
|
ISO 286-2
|
Engineering Advantage Analysis
1. Golden Power Combination
- CF178 Diesel Engine: Delivers a high power output of 4kW, with 20% improved efficiency under 3600rpm operation.
- Domestic Gear Pump: Pressure fluctuation ≤5% (complies with ISO 4401 standard).
- Domestic Hydraulic Motor: Zero-speed braking torque ≥50N·m (ASTM D1557 certified).
2. Compact and Efficient Design
- 450mm ultra-narrow working width increases passability in narrow alleys by 75%.
- 18kN vibration force ensures a compaction degree of ≥90% for gravel layers.
- 400kg lightweight body enables flexible and convenient manual transportation.
3. Ergonomic Design
- Yellow-Black body (RAL 1023 yellow + RAL 9005 black).
- Visual mechanical gauges for real-time monitoring of oil pressure and fuel level.
- Anti-slip steel pedal (meets ISO 286-2 safety standard).
Global Application Scenarios
Municipal Alleys
- Precise compaction of sidewalks and bike lanes with 450mm coverage.
- Joint treatment of curbs with accurate positioning enabled by zero-speed braking.
Garden Landscapes
- Foundation compaction for courtyard hard paving, with the 400kg self-weight protecting vegetation.
- Reinforcement of steps and slopes, controlled by stepless speed regulation at 0-8km/h.
Post-Disaster Emergency
- Rapid repair of collapsed road sections, compacting loose soil layers with 18kN vibration force.
- Foundation treatment for temporary facilities, with recoil hand-pull start eliminating the need for external power supply.
以上翻译全面展示了 450 双轮手扶压路机的产品信息。若你对表格格式、专业术语翻译或内容表述有其他想法，欢迎随时告诉我，我会进行调整。
Be the first to review “450 double-wheel hand-operated road rollers”
Related products
-

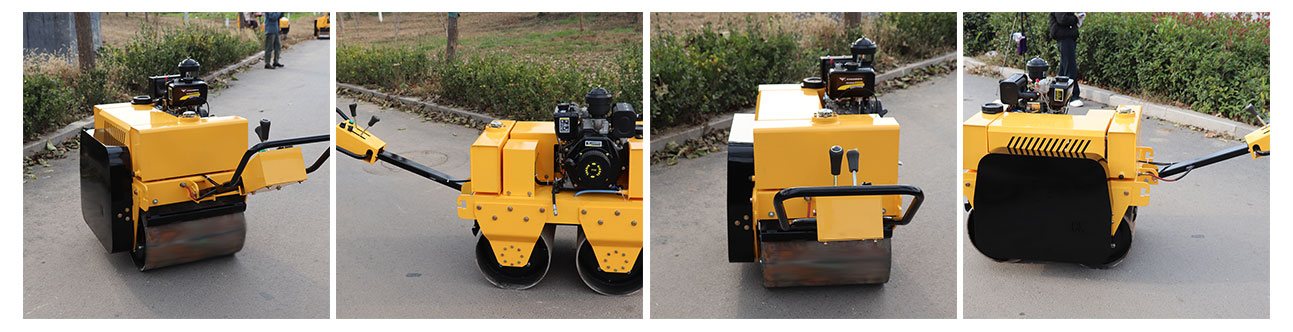

600 Double-wheel Walk-behind Tamping Roller (Air-cooled)/176O5/186O5
