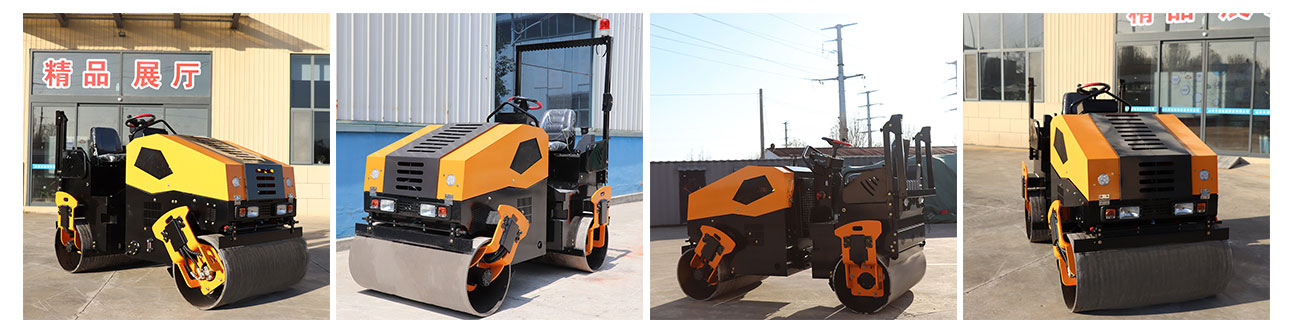

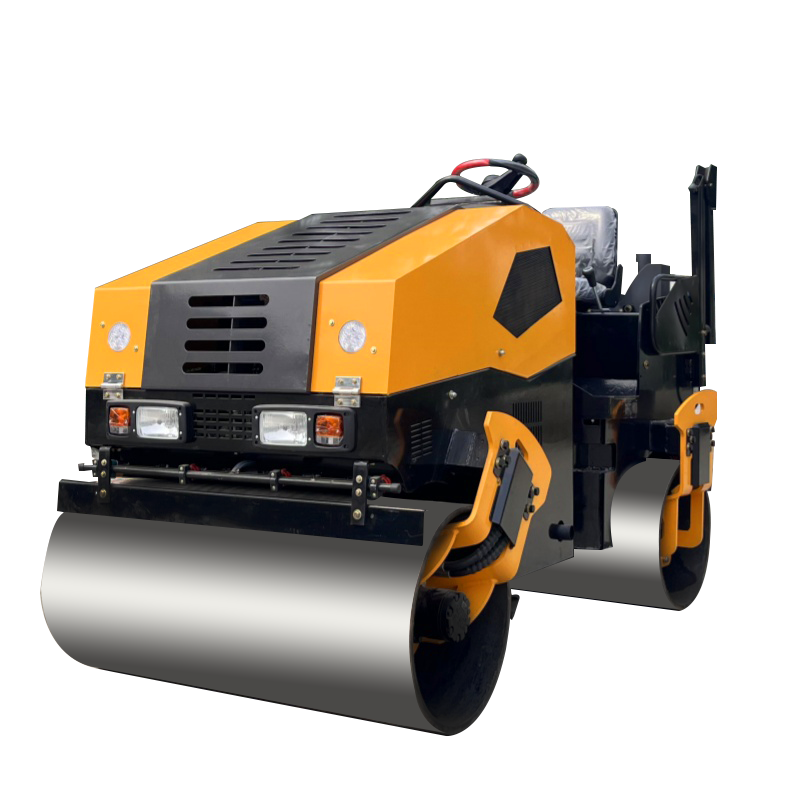

3ton hydraulic road roller

Core Parameter Table (Chinese-English)

3 Tons Full Hydraulic Roller|Changchai 390 Diesel Engine |  CE & ISO Certified | All-Terrain Compaction Expert |  Global Warehouse Stock Available

Engine Technical Parameters	Specifications	International Certifications
Diesel Engine Model	ZN390B	ISO 8528-5
Engine Type	In-line, Water-cooled, 4-Stroke (Naturally Aspirated)	EPA Phase III
Bore×Stroke	90×100mm (3.54×3.94in)	SAE J1349
Displacement	1.9L (115.9cu.in)	CE EN 474-1
Rated Power	29kW (38.9HP) @2600rpm	ANSI B56.6
Maximum Torque	117Nm (86.3lb-ft) @1820rpm	NFPA T2.13.1
Net Weight	220 – 280kg (485 – 617lbs)	–
Lubrication Method	Pressure-Splash Composite	–
Starting Method	Electric Start	–
Engine Dimensions	600×480×650mm (23.6×18.9×25.6in)	ISO 286-2



Overall Machine Technical Parameters	Specifications	International Certifications
Working Width	1200mm (47.2in)	ISO 6016:2008
Operating Weight	3000kg (6,614lbs)	ASTM D6473
Drive Method	Hydraulic Drive	–
Vibration Force	45kN (10,116lbf)	–
Travel Speed	0 – 10km/h (0 – 6.2mph)	–
Compaction Depth	20 – 25cm (7.9 – 9.8in)	–
Overall Dimensions	2400×1300×2360mm (94.5×51.2×92.9in)	ISO 286-2

Engineering Advantage Analysis

1. Golden Power Combination

• Changchai 390 Diesel Engine: Delivers a high power output of 29kW under 2600rpm high-speed operation.
• Italian Fomuu Hydraulic Pump: Flow rate error ≤2% (complies with ISO 4401 standard).
• American Parker Motor: Zero-speed braking torque ≥150N·m (ASTM D1557 certified).

2. High-Efficiency Compaction Performance

• 1200mm extra-wide steel drum increases single-pass compaction efficiency by 55%.
• 45kN vibration force ensures a compaction degree of ≥96% for gravel layers.
• Stepless speed regulation from 0 – 10km/h enables continuous operation on asphalt surfaces.

3. Ergonomic Design

• Yellow-Black body (RAL 1023 yellow + RAL 9005 black).
• Visual hydraulic monitoring with pressure fluctuation error ≤3%.
• Anti-slip steel pedal (meets ISO 286-2 safety standard).

Global Application Scenarios

Municipal Roads

• Final compaction of asphalt surfaces: The 45kN vibration force eliminates wheel marks.
• Precise rolling of sidewalks with 1200mm accurate coverage.

Agricultural Infrastructure

• Hardening of farmland tractor roads: The 3000kg self-weight prevents vehicle sinking.
• Embankment slope reinforcement: Hydraulic drive enables a 25° climbing ability.

Post-Disaster Reconstruction

• Foundation repair of collapsed road sections: 20 – 25cm layered compaction.
• Rapid construction of temporary runways: Stepless speed regulation from 0 – 10km/h.
