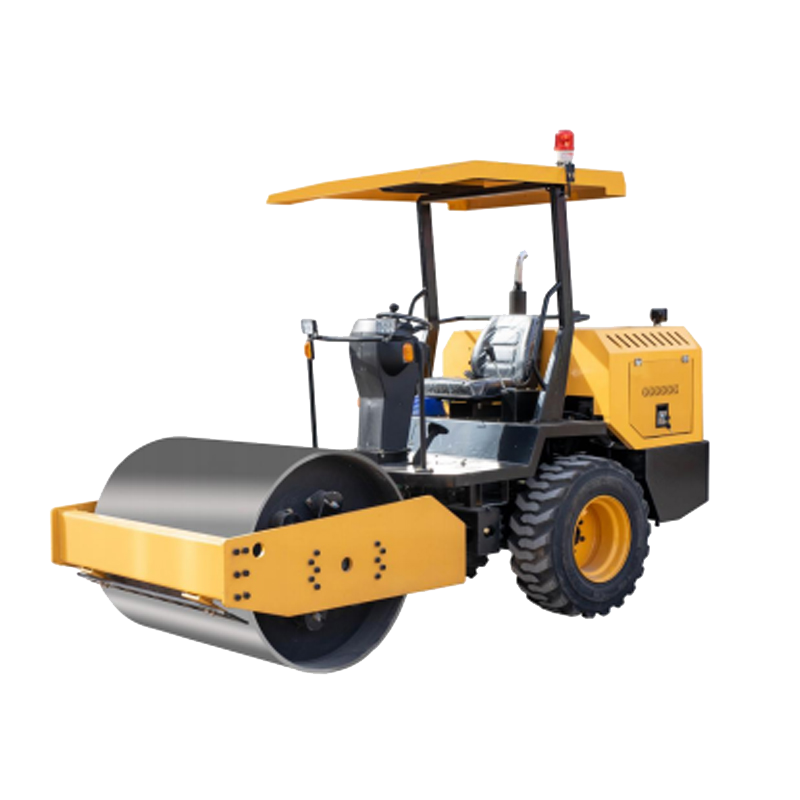

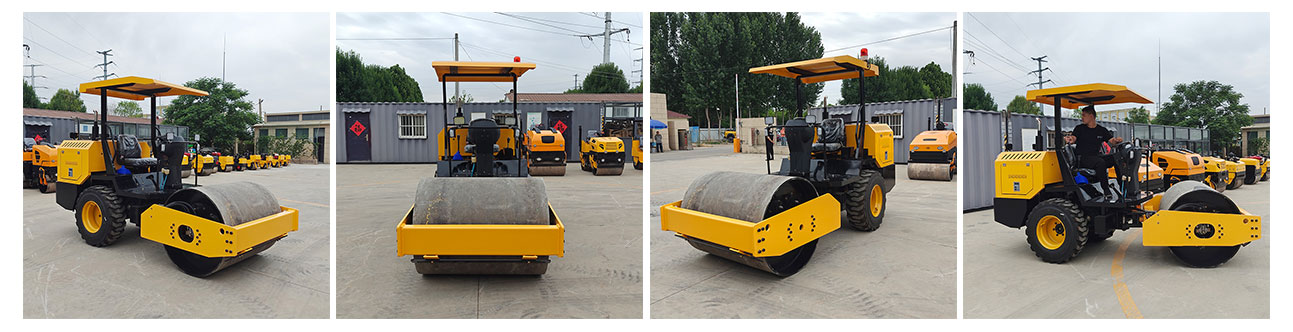

3.5 Tons Rear Rubber Roller
The 3.5 – ton rear rubber roller, certified by CE and ISO, is a versatile all – terrain compaction solution. Powered by a Changchai 390 diesel engine delivering 28.5kW at 2600rpm, it features a Dongfanghong gearbox with ≥92% transmission efficiency and a Danfoss hydraulic pump generating 55kN of vibration force for ≥96% gravel compaction. The 1200mm – wide rubber wheels ensure mark – free asphalt compaction, and the mechanical drive boosts complex – terrain passability by 50%. With a 6.5L fuel tank for 8 – hour continuous operation, its ergonomic design includes a yellow – black body, visual gauges, and a safety – compliant anti – slip pedal. Ideal for high – grade highways, ports, and post – disaster reconstruction, it offers reliable performance across various applications.
Core Parameter Table (Chinese-English)
3.5 Tons Rear Rubber Roller | Changchai 390 Diesel Engine | CE & ISO Certified | All-Terrain Compaction Expert | Global Warehouse Stock Available
| Engine Technical Parameters | Specifications | International Certifications |
| Diesel Engine Model | ZN390B | ISO 8528-5 |
| Engine Type | In-line, Water-cooled, 4-Stroke (Naturally Aspirated) | EPA Phase III |
| Bore×Stroke | 90×100mm (3.54×3.94in) | SAE J1349 |
| Displacement | 1.9L (115.9cu.in) | CE EN 474-1 |
| Rated Power | 28.5kW (38.2HP) @2600rpm | ANSI B56.6 |
| Maximum Torque | 117Nm (86.3lb-ft) @1820rpm | NFPA T2.13.1 |
| Net Weight | 220 – 280kg (485 – 617lbs) | – |
| Lubrication Method | Pressure-Splash Composite | – |
| Starting Method | Electric Start | – |
| Engine Dimensions | 600×480×650mm (23.6×18.9×25.6in) | ISO 286-2 |
| Overall Machine Technical Parameters | Specifications | International Certifications |
| Working Width | 1200mm (47.2in) | ISO 6016:2008 |
| Operating Weight | 3500kg (7,716lbs) | ASTM D6473 |
| Drive Method | Mechanical Drive | – |
| Vibration Force | 55kN (12,364lbf) | – |
| Travel Speed | 0 – 10km/h (0 – 6.2mph) | – |
| Compaction Depth | 20 – 25cm (7.9 – 9.8in) | – |
| Fuel Tank Capacity | 6.5L (1.72gal) | – |
| Overall Dimensions | 4000×1450×2200mm (157.5×57.1×86.6in) | ISO 286-2 |
Engineering Advantage Analysis
1. Golden Power Combination
- Changchai 390 Diesel Engine: Delivers a high power output of 28.5kW under 2600rpm high-speed operation.
- Dongfanghong Gearbox: Achieves a mechanical transmission efficiency of ≥92%, minimizing power loss.
- Danfoss Hydraulic Pump: Generates a 55kN vibration force, ensuring a compaction degree of ≥96% for gravel layers.
2. Innovative Rear Rubber Wheel Design
- 1200mm extra-wide rubber wheels ensure mark-free compaction on asphalt surfaces.
- Mechanical drive enhances adaptability in complex terrains by 50%.
- 5L large-capacity fuel tank enables 8 hours of continuous operation.
3. Ergonomic Design
- Yellow-Black body (RAL 1023 yellow + RAL 9005 black).
- Visual mechanical gauges for real-time monitoring of oil pressure, water temperature, and rotation speed.
- Anti-slip steel pedal (meets ISO 286-2 safety standard).
Global Application Scenarios
High-Grade Highways
- Final compaction of asphalt surfaces: The 55kN vibration force eliminates wheel marks.
- Joint treatment of municipal roads: Achieves 1200mm precise coverage.
Ports and Docks
- Foundation compaction of container yards: The 3500kg self-weight prevents settlement.
- Embankment slope reinforcement: Mechanical drive enables a 25° climbing ability.
Post-Disaster Reconstruction
- Foundation repair of collapsed road sections: 20 – 25cm layered compaction.
- Rapid construction of temporary runways: Stepless speed regulation from 0 – 10km/h.
