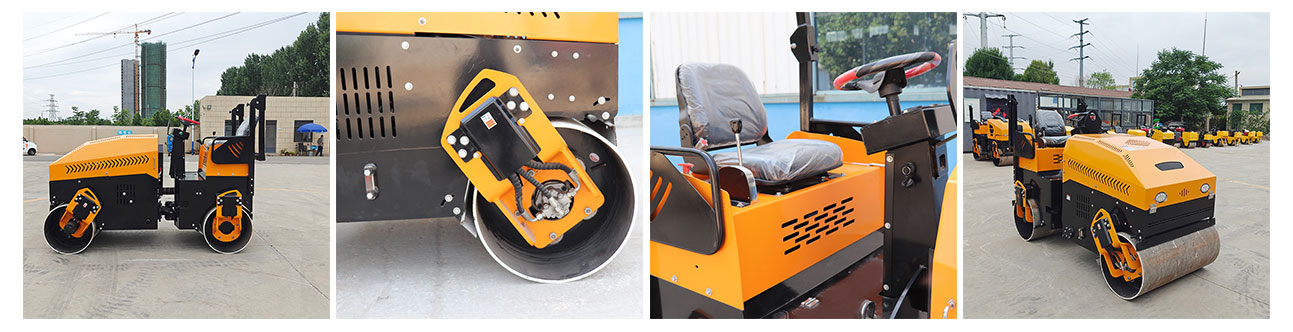

2.5 ton hydraulic road roller

Core Parameter Table (Chinese-English)

2.5 Tons Full Hydraulic Roller | Changchai 390 Diesel Engine | CE & ISO Certified | All-Terrain Compaction Expert | Global Warehouse Stock Available

Engine Technical Parameters	Specifications	International Certifications
Diesel Engine Model	ZN390B	ISO 8528-5
Engine Type	In-line, Water-cooled, 4-Stroke (Naturally Aspirated)	EPA Phase III
Bore×Stroke	90×100mm (3.54×3.94in)	SAE J1349
Displacement	1.9L (115.9cu.in)	CE EN 474-1
Rated Power	29kW (38.9HP) @2600rpm	ANSI B56.6
Maximum Torque	117Nm (86.3lb-ft) @1820rpm	NFPA T2.13.1
Net Weight	220 – 280kg (485 – 617lbs)	–
Starting Method	Electric Start	–
Engine Dimensions	600×480×650mm (23.6×18.9×25.6in)	ISO 286-2



Overall Machine Technical Parameters	Specifications	International Certifications
Working Width	1100mm (43.3in)	ISO 6016:2008
Operating Weight	2500kg (5,512lbs)	ASTM D6473
Drive Method	Hydraulic Drive	–
Vibration Force	40kN (8,992lbf)	–
Travel Speed	0 – 10km/h (0 – 6.2mph)	–
Compaction Depth	20 – 25cm (7.9 – 9.8in)	–
Overall Dimensions	2200×1200×2350mm (86.6×47.2×92.5in)	ISO 286-2

Engineering Advantage Analysis

1. Golden Power Combination

• Changchai 390 Diesel Engine: Delivers a high power output of 29kW, boosting efficiency in municipal projects by 40%.
• Italian Fomuu Hydraulic Pump: Flow rate error ≤2% (complies with ISO 4401 standard).
• American Parker Motor: Zero-speed braking torque ≥150N·m (ASTM D1557 certified).

2. High-Efficiency Compaction Performance

• 1100mm extra-wide steel drum increases single-pass compaction efficiency by 50%.
• 40kN vibration force ensures a compaction degree of ≥95% for gravel layers.
• Hydraulic stepless speed regulation enables continuous operation from 0 – 10km/h.

3. Ergonomic Design

• Yellow-Black body (RAL 1023 yellow + RAL 9005 black).
• Visual hydraulic monitoring with pressure fluctuation error ≤3%.
• 180° rotatable control console allows for flexible steering in narrow areas.

Global Application Scenarios

Municipal Roads

• Layered compaction of asphalt surfaces: Achieves efficient operation at 10km/h.
• Precise rolling of sidewalks and bike lanes with 1100mm accurate control.

Agricultural Infrastructure

• Hardening of farmland tractor roads: The 2500kg self-weight prevents vehicle sinking.
• Embankment slope reinforcement: The 40kN vibration force prevents seepage.

Post-Disaster Reconstruction

• Foundation repair of collapsed road sections: Quickly compacts gravel layers.
• Emergency construction of temporary access roads: Zero-speed braking provides safety protection.
