| Engine Technical Parameters | Specifications | International Certifications |
|---|---|---|
| Diesel Engine Model | CF186F-E | ISO 8528-5 |
| Engine Type | Vertical Single-Cylinder 4-Stroke | EPA Phase III |
| Bore×Stroke | 86×72mm (3.39×2.83in) | SAE J1349 |
| Displacement | 0.418L (25.5cu.in) | CE EN 474-1 |
| Rated Power | 5.9kW/6.3kW/6.6kW (Multi-Operation Conditions) | ANSI B56.6 |
| Rated Speed | 3000/3600rpm | NFPA T2.13.1 |
| Net Weight | ≤48 – 50kg (106 – 110lbs) | – |
| Starting Method | Electric Start | – |
| Overall Machine Technical Parameters | Specifications | International Certifications |
|---|---|---|
| Working Width | 900mm (35.4in) | ISO 6016:2008 |
| Vibration Force | 25kN (5,620lbf) | ASTM D6473 |
| Drive Method | Hydraulic Drive | – |
| Operating Weight | 980kg (2,161lbs) | – |
| Travel Speed | 0 – 8km/h (0 – 5mph) | – |
| Overall Dimensions | 1900×900×1700mm (74.8×35.4×66.9in) | ISO 286-2 |
Product Introduction

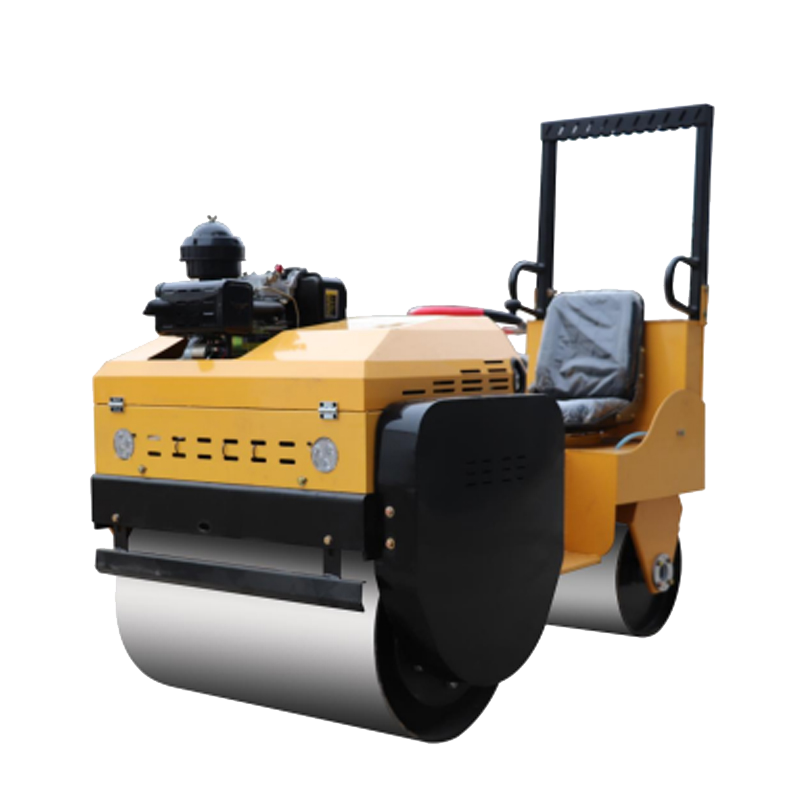

1 Ton Seat Roller | CF186F Diesel Engine | CE & ISO Certified | All-Terrain Compaction Expert | Global Warehouse Stock Available
Engineering Advantage Analysis
1. Golden Power Combination
- CF186F Diesel Engine: Delivers a peak power of 6.6kW under 3600rpm high-speed operation.
- Danfoss Hydraulic Pump: Pressure fluctuation ≤3% (complies with ISO 4413 standard).
- Eaton Travel Motor: Zero-speed braking torque ≥120N·m.
2. High-Efficiency Compaction Performance
- 900mm extra-wide steel drum increases single-pass compaction efficiency by 40%.
- 25kN vibration force ensures a compaction degree of over 93% for gravel layers.
- 8km/h fast transition (controlled by hydraulic stepless speed regulation).
3. Ergonomic Design
- Yellow anti-corrosion body (RAL 1021 international color standard).
- Suspension seat with shock absorption rate ≥85%.
- 180° rotatable control console allows for flexible operation in narrow areas.
Global Application Scenarios
Municipal Roads
- Layered compaction of asphalt surfaces: Achieves continuous operation at 8km/h.
- Precise rolling of sidewalks and bike lanes with 900mm accurate control.
Agricultural Infrastructure
- Hardening of farmland tractor roads: The 980kg self-weight prevents vehicle sinking.
- Embankment slope reinforcement: The 25kN vibration force prevents seepage.
Post-Disaster Reconstruction
- Foundation repair of collapsed road sections: Quickly compacts gravel layers.
- Emergency construction of temporary access roads: Zero-speed braking provides safety protection.
