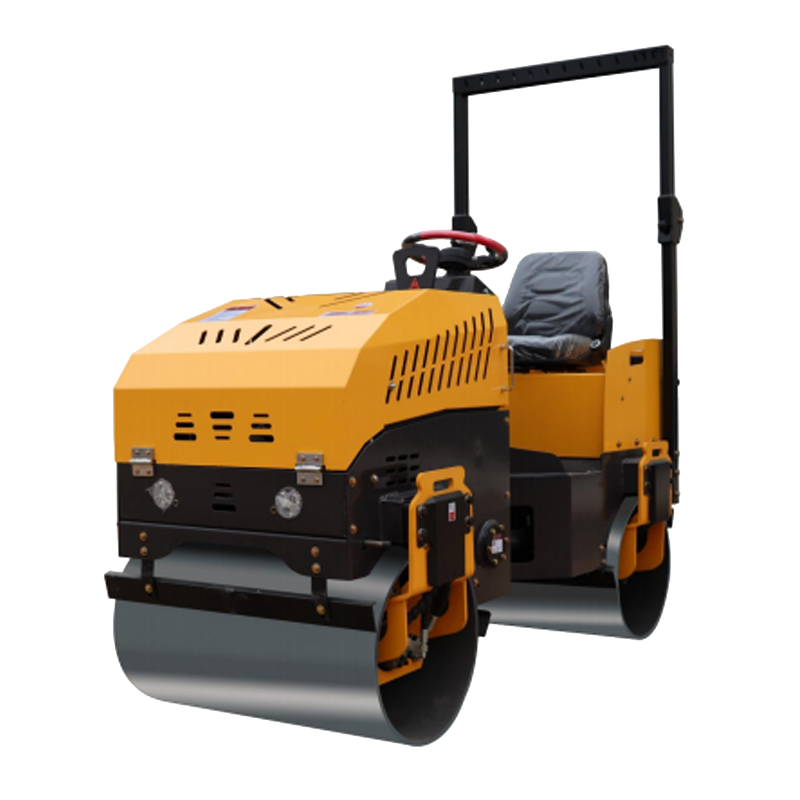

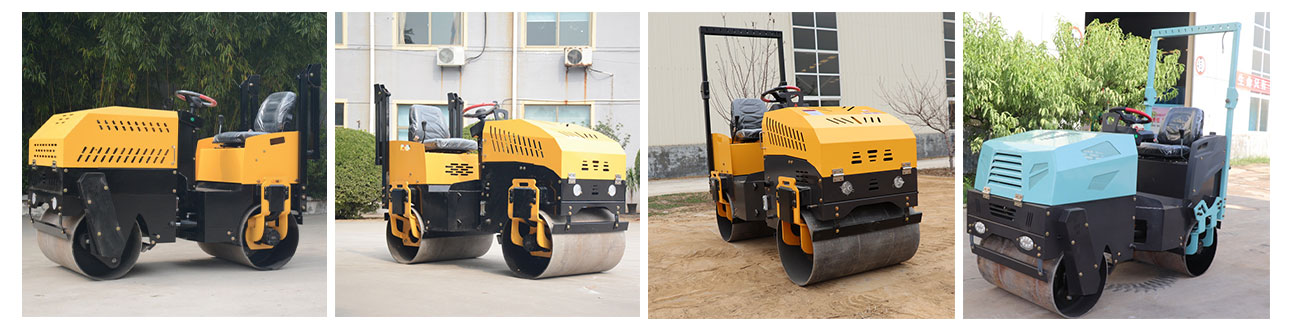

1.6 Road roller

Core Parameter Table

1.6 Tons Hydraulic Roller | CF192F Diesel Engine | CE & ISO Certified | All-Terrain Compaction Expert | Global Warehouse Stock Available

Engine Technical Parameters	Specifications	International Certifications
Diesel Engine Model	CF192F-E	ISO 8528-5
Engine Type	Vertical Single-Cylinder 4-Stroke	EPA Phase III
Bore×Stroke	92×75mm (3.62×2.95in)	SAE J1349
Displacement	0.499L (30.45cu.in)	CE EN 474-1
Rated Power	7.3kW/8.5kW @3000/3600rpm	ANSI B56.6
Fuel Consumption Rate	≤273.5/283g/kW·h	NFPA T2.13.1
Fuel Tank Capacity	5.5L (1.45gal)	–
Engine Oil Capacity	1.85L (0.49gal)	–
Lubrication Method	Pressure-Splash Composite	–
Starting Method	Recoil Rope/Electric Start	–
Engine Dimensions	420×440×495mm (16.5×17.3×19.5in)	ISO 286-2



Overall Machine Technical Parameters	Specifications	International Certifications
Working Width	850mm (33.5in)	ISO 6016:2008
Operating Weight	1600kg (3,527lbs)	ASTM D6473
Drive Method	Hydraulic Drive	–
Vibration Force	30kN (6,742lbf)	–
Travel Speed	0 – 10km/h (0 – 6.2mph)	–
Compaction Depth	20 – 25cm (7.9 – 9.8in)	–
Overall Dimensions	1980×900×2130mm (78×35.4×83.9in)	ISO 286-2

Engineering Advantage Analysis

1. Golden Power Combination

• CF192F Diesel Engine: Delivers a peak power of 8.5kW under 3600rpm high-speed operation.
• Italian Fomuu Hydraulic Pump: Flow rate error ≤2% (complies with ISO 4401 standard).
• American Parker Motor: Zero-speed braking torque ≥150N·m (ASTM D1557 certified).

2. High-Efficiency Compaction Performance

• 850mm extra-wide steel drum increases single-pass compaction efficiency by 45%.
• 30kN vibration force ensures a compaction degree of ≥93% for gravel layers.
• Stepless speed regulation from 0 – 10km/h enables continuous operation on asphalt surfaces.

3. Ergonomic Design

• Yellow anti-corrosion body (RAL 1023 international color standard).
• Visual pressure gauges for real-time monitoring of the hydraulic system.
• 180° rotatable control console allows for flexible operation in narrow areas.

Global Application Scenarios

Municipal Roads

• Layered compaction of asphalt surfaces: Achieves efficient operation at 10km/h.
• Precise rolling of sidewalks and bike lanes with 850mm accurate control.

Agricultural Infrastructure

• Hardening of farmland tractor roads: The 1600kg self-weight prevents vehicle sinking.
• Embankment slope reinforcement: The 30kN vibration force prevents seepage.

Post-Disaster Reconstruction

• Foundation repair of collapsed road sections: Quickly compacts gravel layers.
• Emergency construction of temporary access roads: Zero-speed braking provides safety protection.
