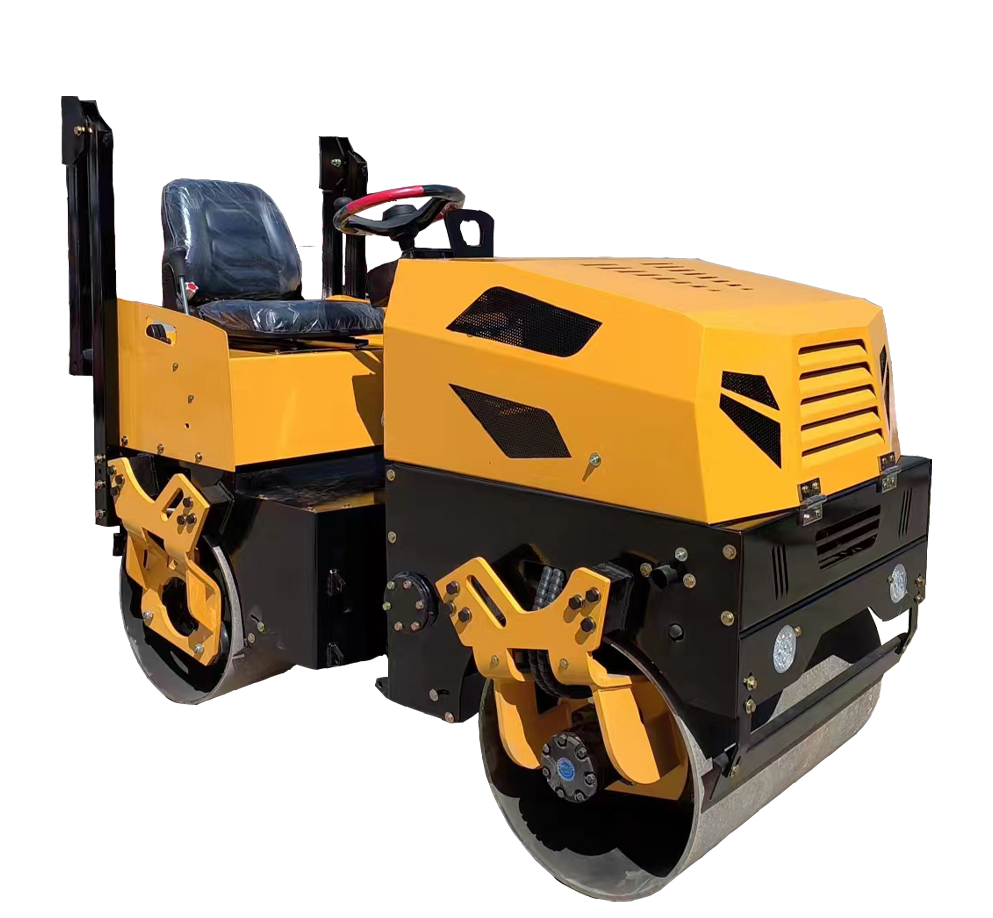

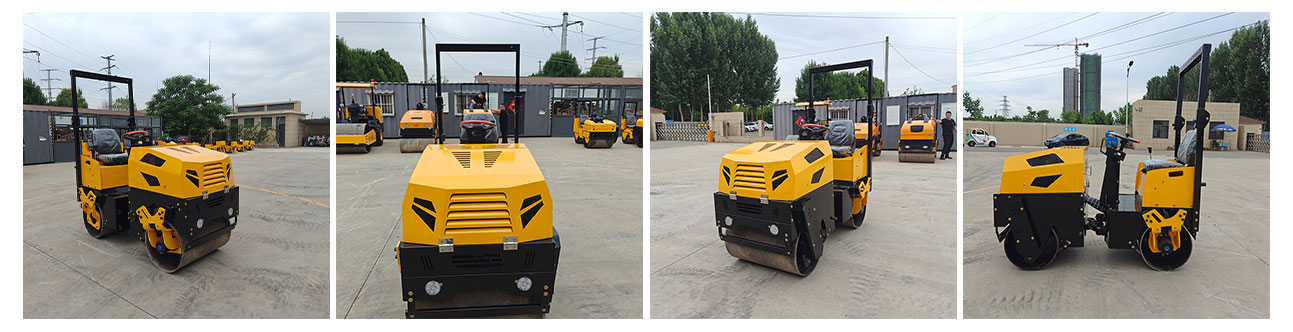

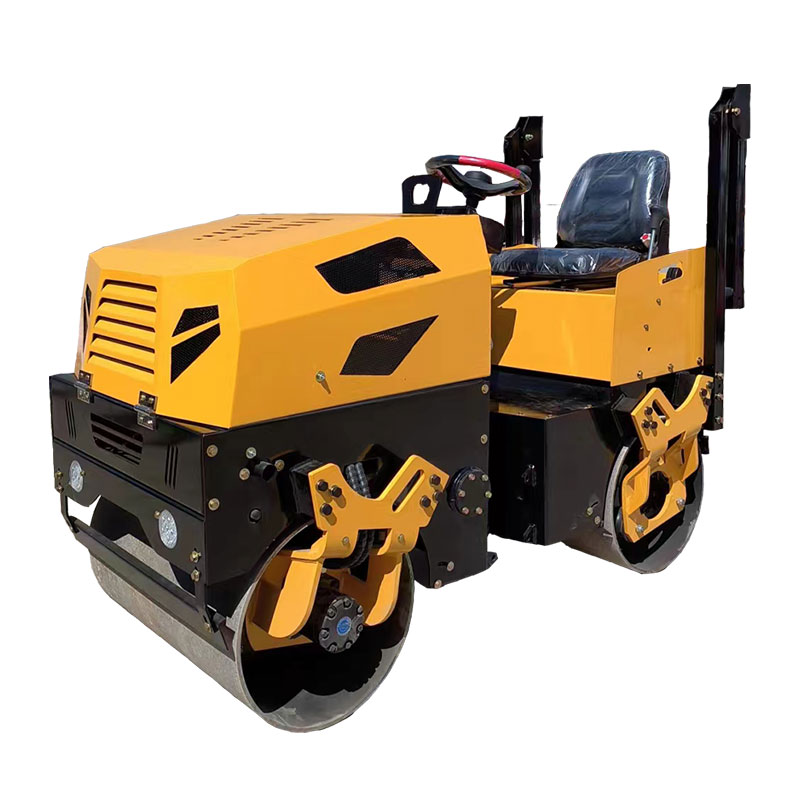

1.5ton hydraulic road roller

Core Parameter Table (Chinese-English)

1.5 Tons Hydraulic Roller | CF188F Diesel Engine | CE & ISO Certified | All-Terrain Compaction Expert | Global Warehouse Stock Available

Engine Technical Parameters	Specifications	International Certifications
Diesel Engine Model	CF188F-E	ISO 8528-5
Engine Type	Vertical Single-Cylinder 4-Stroke	EPA Phase III
Bore×Stroke	88×75mm (3.46×2.95in)	SAE J1349
Displacement	0.456L (27.8cu.in)	CE EN 474-1
Rated Power	6.9kW/7.5kW @3000/3600rpm	ANSI B56.6
Fuel Consumption Rate	≤273.5/283g/kW·h	NFPA T2.13.1
Fuel Tank Capacity	5.5L (1.45gal)	–
Engine Oil Capacity	1.65L (0.44gal)	–
Lubrication Method	Pressure-Splash Composite	–
Starting Method	Recoil Rope/Electric Start	–
Engine Dimensions	417×441×494mm (16.4×17.4×19.4in)	ISO 286-2



Overall Machine Technical Parameters	Specifications	International Certifications
Working Width	800mm (31.5in)	ISO 6016:2008
Operating Weight	1500kg (3,307lbs)	ASTM D6473
Vibration Method	Belt Drive	–
Drive Method	Hydraulic Dual Drive	–
Vibration Force	35kN (7,868lbf)	–
Travel Speed	0 – 8km/h (0 – 5mph)	–
Compaction Depth	20 – 25cm (7.9 – 9.8in)	–
Overall Dimensions	1980×900×2130mm (78×35.4×83.9in)	ISO 286-2

Engineering Advantage Analysis

1. Golden Power Combination

• CF188F Diesel Engine: Delivers a peak power of 7.5kW under 3600rpm high-speed operation.
• Italian Fomuu Hydraulic Pump: Flow rate error ≤2% (complies with ISO 4401 standard).
• American Parker Motor: Zero-speed braking torque ≥150N·m (ASTM D1557 certified).

2. High-Efficiency Compaction Performance

• 800mm extra-wide steel drum increases single-pass compaction efficiency by 50%.
• 35kN vibration force ensures a compaction degree of ≥95% for gravel layers.
• Hydraulic dual-drive system enables a climbing ability of 25°.

3. Ergonomic Design

• Yellow anti-corrosion body (RAL 1023 international color standard).
• Visual pressure gauges for real-time monitoring of the hydraulic system.
• Rotatable control console allows for 360° flexible operation in narrow areas.

Global Application Scenarios

Municipal Roads

• Layered compaction of asphalt surfaces: Achieves continuous operation at 8km/h.
• Precise rolling of sidewalks and bike lanes with 800mm accurate control.

Agricultural Infrastructure

• Hardening of farmland tractor roads: The 1500kg self-weight prevents vehicle sinking.
• Embankment slope reinforcement: The 35kN vibration force prevents seepage.

Post-Disaster Reconstruction

• Foundation repair of collapsed road sections: Quickly compacts gravel layers.
• Emergency construction of temporary access roads: Hydraulic dual-drive provides safety protection.
